| Gewicht | 0.86 kg | ||
| compressed air connection, exhaust | g 1/2 | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| Medium | compressed air | ||
| min. medium temperature | -25 °c | ||
| min. ambient temperature | -25 °c | ||
| control pressure min. | 2 bar | ||
| atex | suitable for atex | ||
| working pressure max | 16 bar | ||
| Anschlussart | pipe connection | ||
| actuating control | single solenoid | ||

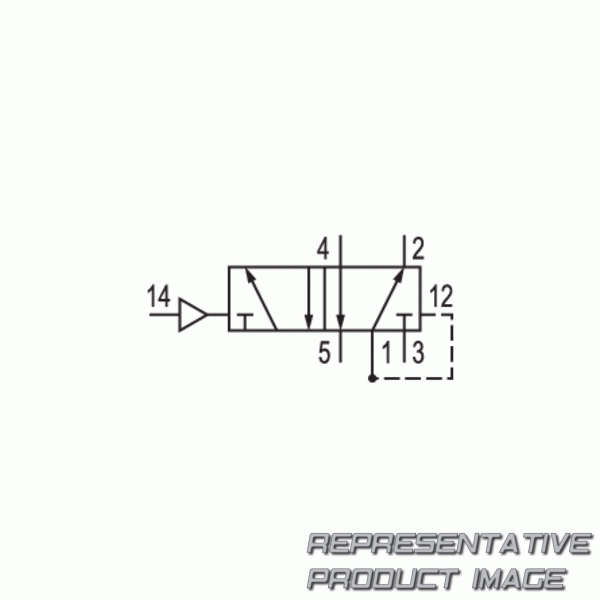

| switching principle | 5/2 | ||
| activation | pneumatically |
| compressed air connection pilot exhaust | g 1/8 | ||
| oil content of compressed air max. | 1 mg/m³ | ||
| max. particle size | 50 µm | ||
| max. medium temperature | 70 °c | ||
| max. ambient temperature | 70 °c | ||
| control pressure max. | 10 bar | ||
| valve type | spool valve, positive overlapping | ||
| Dichtprinzip | soft seal | ||
| working pressure min. | -0.95 bar | ||
| compressed air connection output | g 1/2 | ||
| return type | with air spring return | ||
| nominal flow qn | 4100 l/min |
