| Brand | NTN | ||

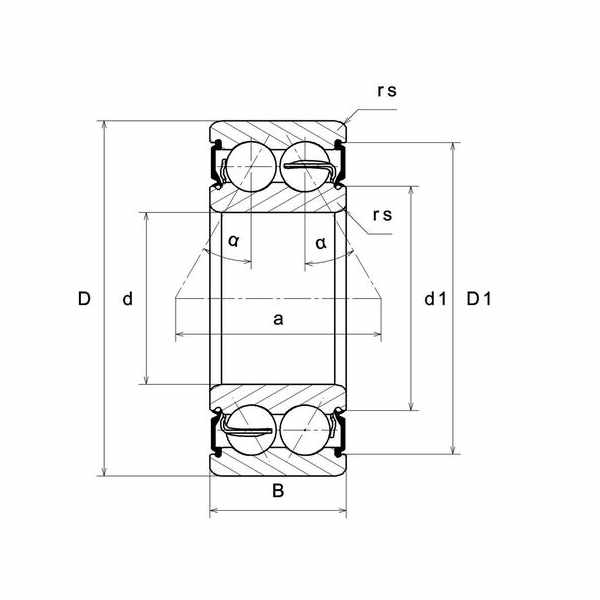

| α - Contact angle | 25 ° | ||
| Radial clearance class | CN | ||
| C0 - Static load | 43,5 kN | ||
| Tmin - Min operating temperature | -20 °C | ||
| BPFO - Characteristic outer ring frequency | 4,683 Hz | ||
| FTF - Characteristic cage frequency | 0,426 Hz | ||

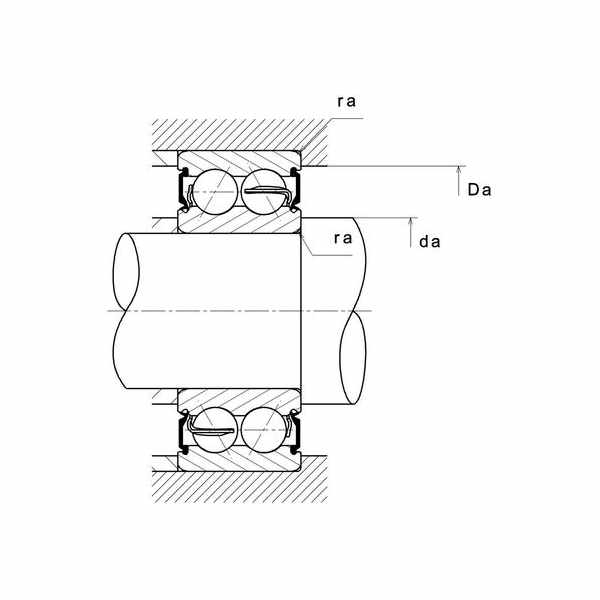

| da min - Min shoulder diameter IR | 65 mm | ||
| ra max - Max shaft & housing fillet radius | 1,5 mm |
| a - Charge load application point | 49,2 mm | ||
| rs - Min fillet radius | 1,5 mm | ||
| C - Dynamic load | 49,5 kN | ||
| Nlim - Grease lubrication limit speed | 4300 tr/min | ||
| Tmax - Max operating temperature | 120 °C | ||
| BPFI - Characteristic inner ring frequency | 6,317 Hz | ||
| BSF - Characteristic rolling element frequency | 5,968 Hz | ||
| Da max - Max shoulder diameter OR | 91 mm |
