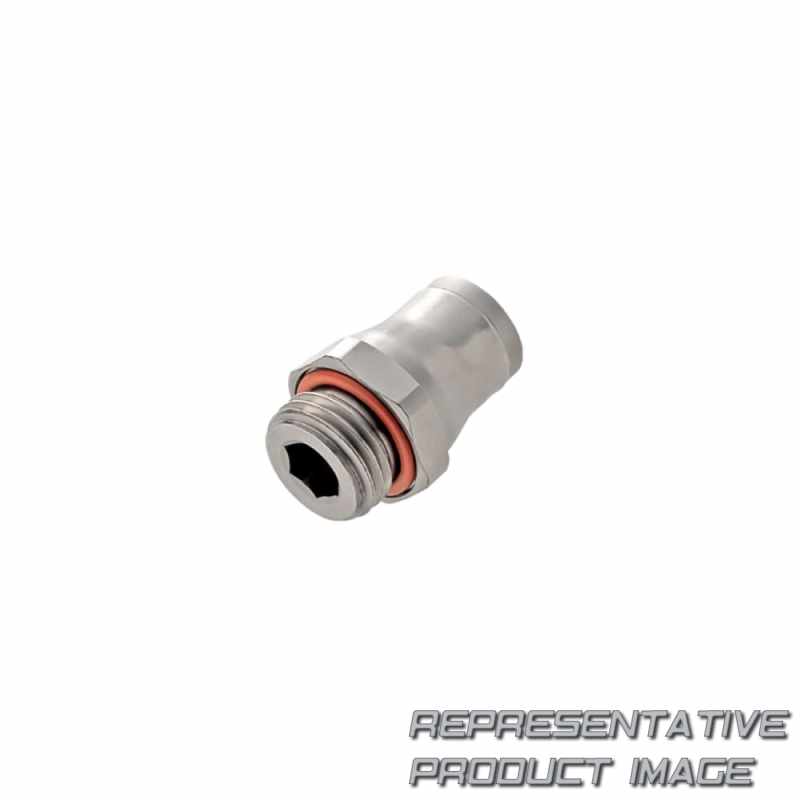

3801 08 17 Parker Hannifin

PARKER 3801 08 17

Name: 3801 08 17 PARKER
Brand: PARKER
SKU: 581948-de-eur
Price: 51.95 EUR
Availability: InStock

51,95 € 1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

In order to meet your technical and environment requirements, Parker Legris designed this range of metal fittings, offering robustness, reliability and resistance to industrial fluids for the most demanding environments.

max. Druck	30 bar, 435 psi, 290 to 435, 30.0
Dichtung	fkm

Gewicht	27g

Technical data

Connection 2 Tube O.D. (mm)		8
Shape		Male stud fitting thread
Connection 1 Thread Size (metric)		G3/8
Connection 1 Thread Style		BSPP
Body Material		STAINLESS STEEL 316L
O-Ring Material		FKM
Quantity per Box		2
Application		Food Process, Paper Industry, Petrochemical, Pharmaceutical, Chemical, Medical
Specifications Met		ISO 14743 Pneumatic transmissions, push-in fittings for thermoplastic tubing, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, DI: 94/9/EC (ATEX), RG : 1907/2006 (REACH), UL94 V-0: Seal, RG: 21CFR (FDA), RG: 1935/2004/EC, USDA NSF H1: Grease

Connection 2 Tube O.D. (inch)		na
Connection 3 Tube O.D. (mm)		na
Produktfamilie		Stud Fittings
Connection 4 Tube O.D. (mm)		na
Nut Material		na
Maximum Operating Pressure		30 barg
Gewicht		0.027 kg
Media		All fluids compatible with the fitting and tubing component materials
