PARKER VSTI3/8EDVITCF

7,88 € 50+ Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	16-63 mpa, 160-630 bar, 2321-9137 psi
Dichtung	fkm (vit)

Gewicht	28g

materials of construction		steel
Anschlussart		male bspp thread - ed-seal (iso 1179)
connection size		g 3/8 a
connection 1 size		eo 24° cone end, male metric thread - o-ring (iso 6149), male metric thread - ed-seal (iso 9974), male bspp thread - ed-seal (iso 1179), eo 24° dko swivel, na
tube outside diameter		6-42 mm
maximum operating pressure		16-63 mpa, 160-630 bar, 2321-9137 psi
Anwendung		agriculture equipment, automotive process, chemical transfer, construction equipment, fuel transfer, hydraulic, manufacturing equipment, marine, material handling, mobile equipment, oilfield, packaging, transportation

seal material		fkm (vit)

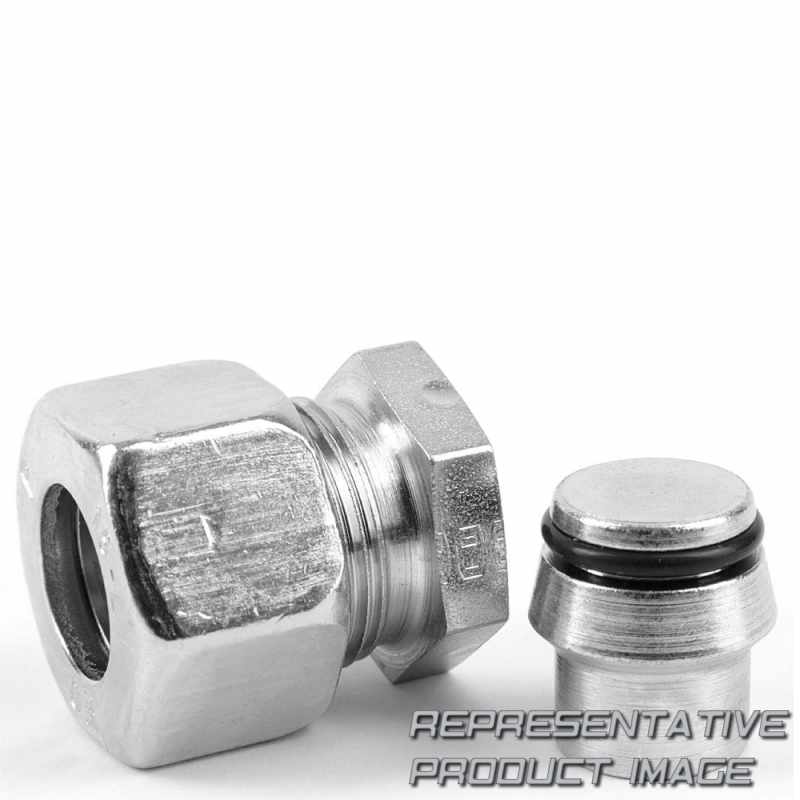

shape		blanking plug for ports
connection 1 tube outside diameter		06 to 42 mm
product series		light, heavy, na
Maximale Betriebstemperatur		+250 steel, +400 stainless steel °c, +482 steel, +752 stainless steel °f
Minimale Betriebstemperatur		-40 (steel); -60 (stainless steel) °c, -40 steel, -76 stainless steel °f
specifications met		din iso 8434
