| material clamping ring | aluminum | ||
| material bellow | caoutchouc/butadiene caoutchouc | ||
| pressure for determining forces | 6 bar | ||
| Medium | compressed air | ||
| min. ambient temperature | -40 °c | ||
| working pressure min. | 0 bar | ||
| force min. | 84000 n | ||
| max. effective stroke | 200 mm | ||
| cover diameter | 517 mm | ||

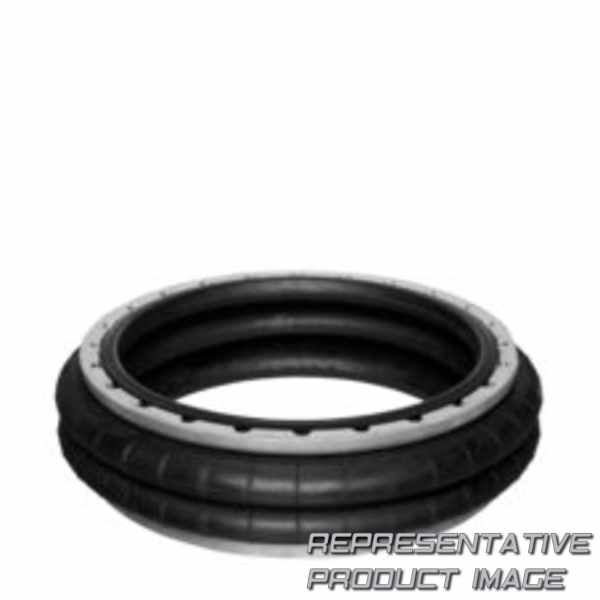

| Typ | bellow actuator with mounting ring |
| Material mounting ring | aluminum | ||
| Gewicht | 12 kg | ||
| reduced service life at a temperature greater than | 50 °c | ||
| max. ambient temperature | 70 °c | ||
| working pressure max | 8 bar | ||
| force max. | 141000 n | ||
| min. radial installation space | 633 mm | ||
| permissible angle of tilt max. | 25 ° | ||
| Funktionsprinzip | single-acting, retracted without pressure | ||
| bellows | double |
