| Gehäusematerial | polyamide | ||
| cable exit angle | 180° | ||
| electrical connection 1, coding | a-coded | ||
| electrical connection 1, thread size | m12x1 | ||
| operational↩voltage | 48 v ac/dc | ||
| max. current | 4 a | ||
| min. ambient temperature | -40 °c | ||
| certificates | ul (underwriters laboratories) | ||
| Typ | round plug connectors |
| Gewicht | 0.024 kg | ||
| cable exit | straight | ||

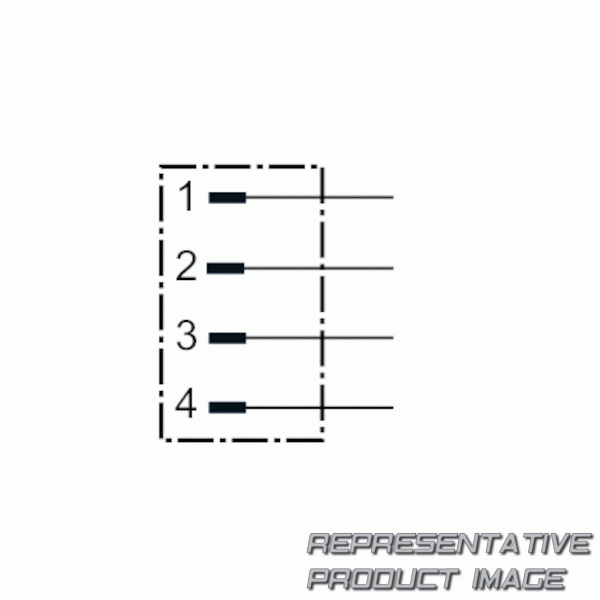

| electrical connection 1, number of poles | 4-pin | ||
| electrical connection 1, type | plug | ||
| Schutzklasse | ip67 | ||
| max. ambient temperature | 85 °c | ||
| Shielding | unshielded | ||
| Anschlussart | screws |
