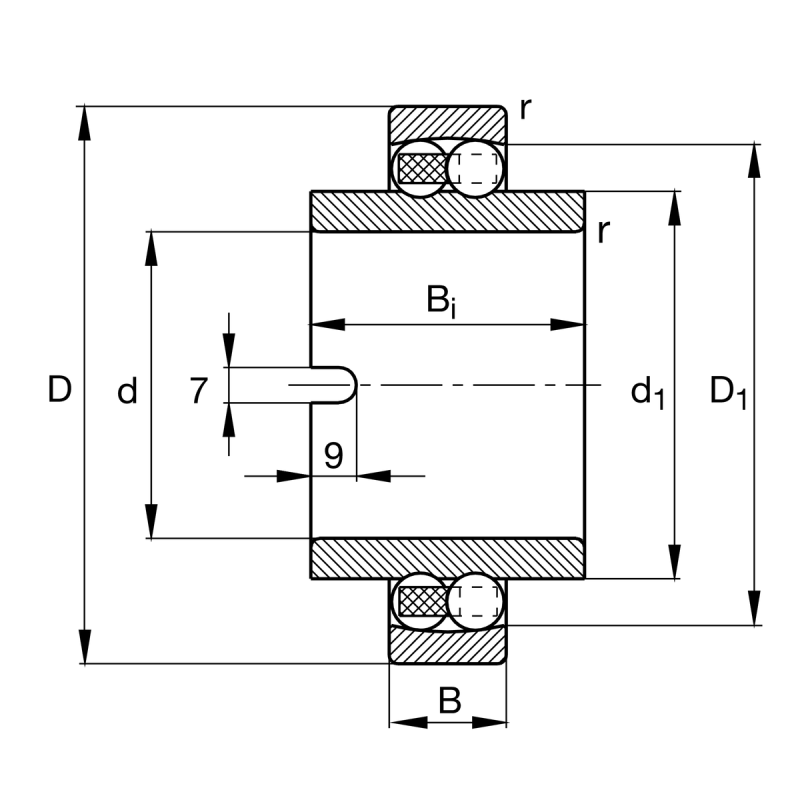

| Bore diameter | d | 30 | mm |
| Width, outer ring | B | 16 | mm |
| Basic dynamic load rating, radial | Cr | 15,900 | |
| Fatigue load limit, radial | Cur | 295 | N |
| Reference speed | nϑr | 11,400 |
| Außen-Ø | D | 62 | mm |
| Width, inner ring | Bi | 48 | mm |
| Basic static load rating, radial | C0r | 4,650 | |
| Limiting speed | nG | 13,100 |

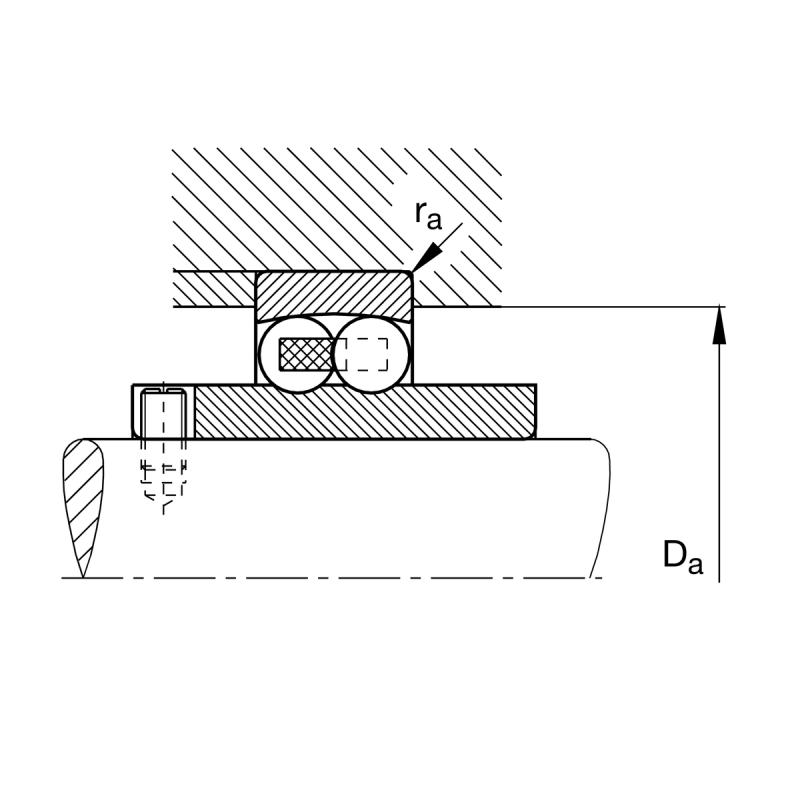

| Maximum diameter of housing shoulder | Da max | 56,40 | mm |
| Maximaler Hohlkehlradius | ra max | 1 | mm |
| Minimum chamfer dimension | rmin | 1 | mm |
| Shoulder diameter inner ring | d1 | 40,10 | mm |
| Hight retaining slot | t | 9 | mm |
| Shoulder diameter outer ring | D1 | 51,60 | mm |
| Width retaining slot | b | 7 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | 11206-TN9 (SKF) |
| KOYO | 11206 |
| Steyr-Daimler-Puch | 11206 |
| NSK | 11206TNG |
| RIV Officine di Villar Perosa | AJC30 |
| SNR | 11206G15 (SNR) |
| SKF | 11206-E TN9 (SKF) |
| SKC | 4327167 |
| SKC | 5946327 |
| Neuweg Fertigung GmbH | 11206 |
| NSK | 11206 |
| SKF | 11206 (SKF) |
| Marlin-Rockwell Corp. | 11206E |
