| Standards | nfe 49004 | ||
| Hub | 10 mm | ||
| Dämpfung | elastic cushioning | ||
| environmental requirements | industry standard | ||
| scraper | standard industrial scraper | ||
| retracting piston force | 309 n | ||
| min. ambient temperature | -20 °c | ||
| working pressure min. | 1.5 bar | ||
| Anschlüsse | m5 | ||
| impact energy | 0.2 j | ||
| weight +10 mm stroke | 0.02 kg | ||
| Medium | compressed air | ||
| max. medium temperature | 80 °c |
| piston Ø | 25 mm | ||

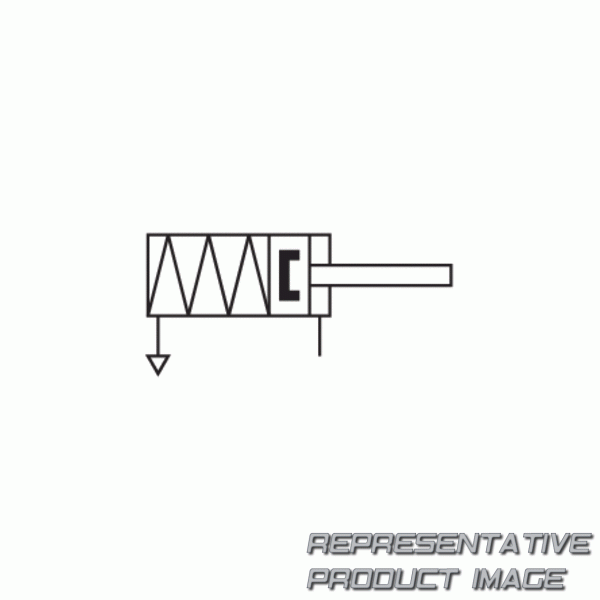

| Funktionsprinzip | single-acting, extended without pressure | ||
| magnetic piston | piston with magnet | ||
| piston rod | single | ||
| pressure for determining piston forces | 6,3 bar | ||
| extracting piston force | 25 n | ||
| max. ambient temperature | 80 °c | ||
| working pressure max | 10 bar | ||
| Kolbenstangengewinde | m6 | ||
| weight 0 mm stroke | 0.143 kg | ||
| stroke max. | 25 mm | ||
| min. medium temperature | -20 °c |
