| working pressure min. | 0 bar | ||
| min. ambient temperature | -25 °c | ||
| min. medium temperature | -25 °c | ||
| port 1 | g 3/8 | ||
| Medium | compressed air | ||
| flow qn | 3100 l/min | ||
| Gewicht | 0.08 kg | ||
| seal material | acrylonitrile butadiene rubber |
| working pressure max | 10 bar | ||
| max. ambient temperature | 80 °c | ||
| max. medium temperature | 80 °c | ||

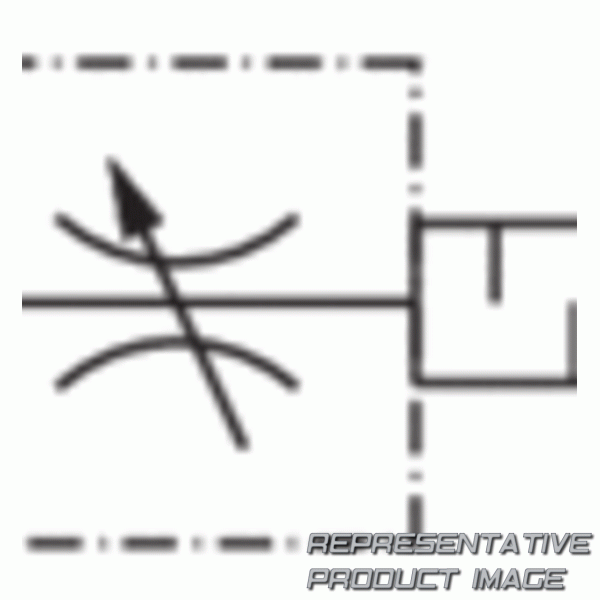

| Typ | throttle valve with silencer | ||
| compressed air connection type | external thread | ||
| tightening torque for silencer max. | 13 nm | ||
| Gehäusematerial | brass | ||
| silencer material | stainless steel |
