| Dichtprinzip | soft seal | ||
| Medium | compressed air | ||
| min. ambient temperature | 0 °c | ||
| min. medium temperature | 0 °c | ||
| oil content of compressed air min. | 0 mg/m³ | ||

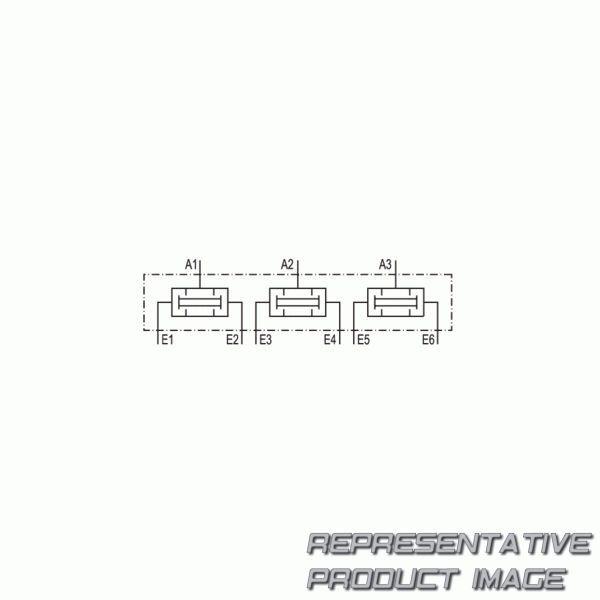

| logic function | and | ||
| nominal flow qn | 80 l/min | ||
| working pressure max | 10 bar | ||
| Gehäusematerial | polyamide |
| Typ | poppet valve | ||
| max. particle size | 1 µm | ||
| max. ambient temperature | 80 °c | ||
| max. medium temperature | 80 °c | ||
| oil content of compressed air max. | 1 mg/m³ | ||

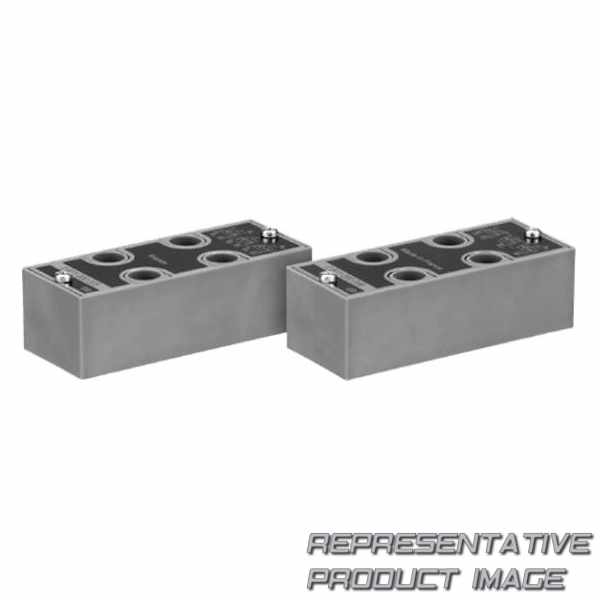

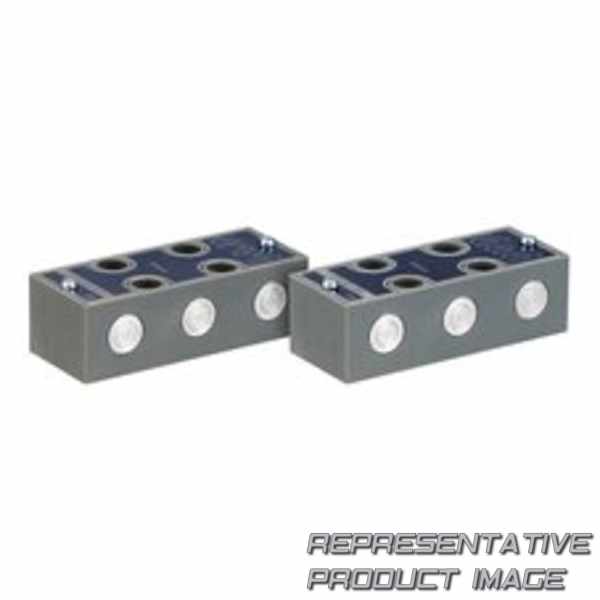

| Anschlussart | plate valve with pipe connection | ||
| working pressure min. | 1 bar | ||
| Gewicht | 0.03 kg | ||
| seal material | acrylonitrile butadiene rubber |
