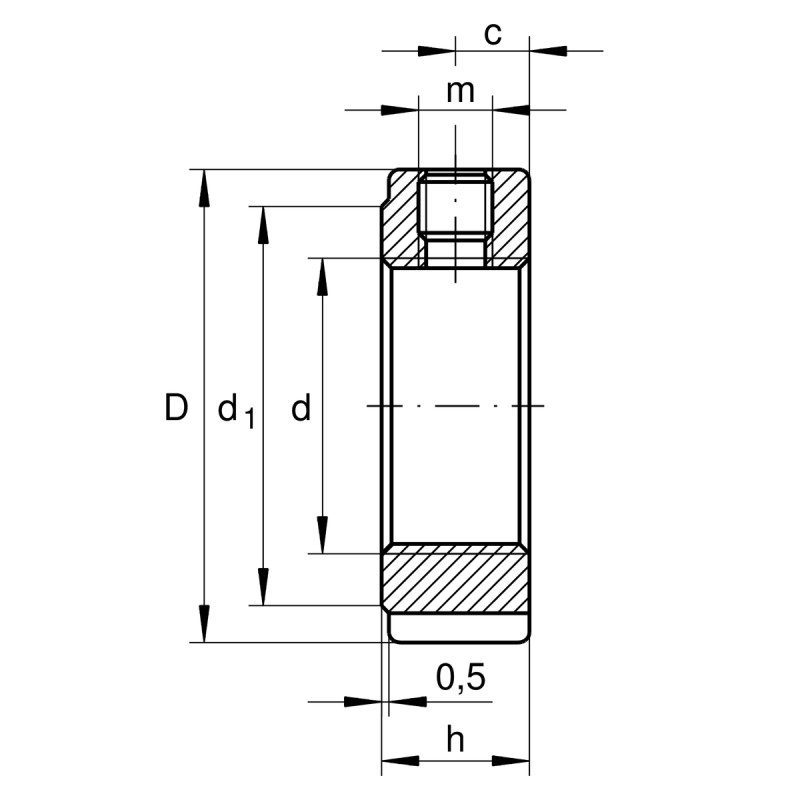

| Thread | G | M65X2 | |
| Höhe | T | 16 | mm |
| Breaking load, axial | FaB | 280,000 | |
| Mounting torque reference | MAL | 88,50 | Nm |
| Außen-Ø | D | 85 | mm |
| Mounting torque set screw | Mm | 3,69 | Nm |
| Breakawag | ML | 147.493 | |
| Massenträgheitsmoment | Mm | 4,24 | kg * cm² |
| Plant diameter outside | d1 | 78 | mm |

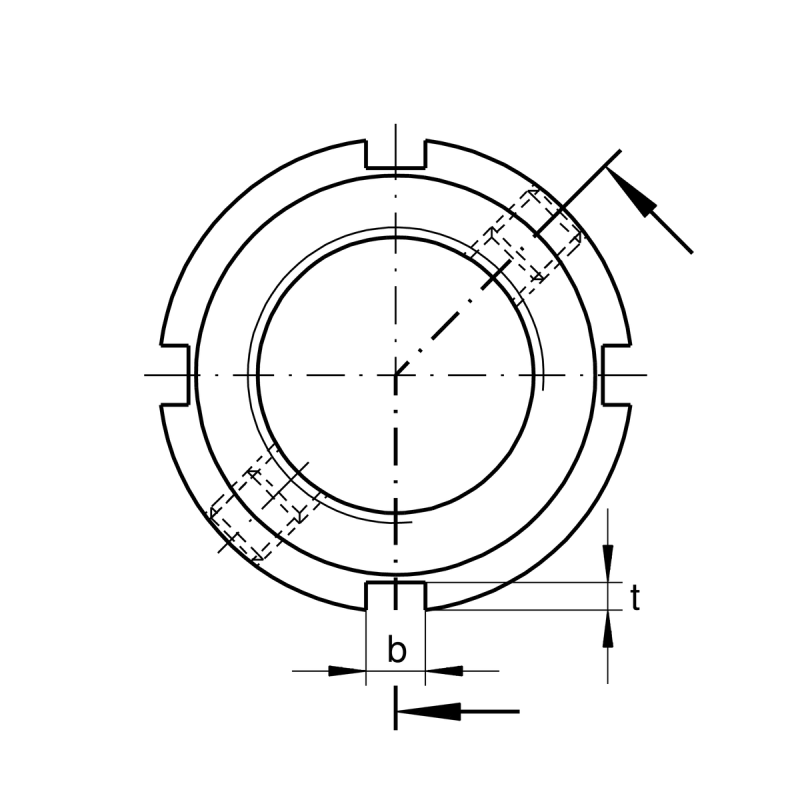

| Width retaining slot | b | 7 | mm |
| Threaded - threaded pin | m | M6 |
| Hight retaining slot | t | 3 | mm |
| Distance bore | c | 8 | mm |
