INA ZLE5202-2Z

0009650810000

309,54 € ~~371,25 €~~ -16%

47 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Breite	66,50mm
Innendurchmesser	M14

Außendurchmesser	40mm
Gewicht	230g

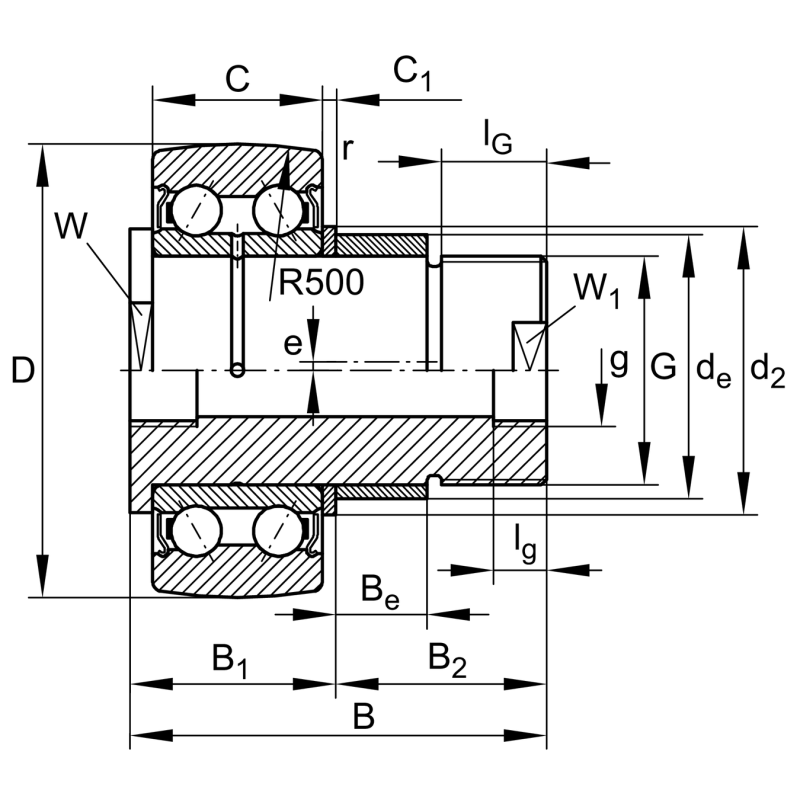

Außen-Ø	D	40	mm
Breite	B	66,50	mm
Basic static load rating, radial	C_0r	7,000
Speed on permanent grease lubrication	n_{D G}	10,200

Diameter of eccentric	d_e	22	mm
Basic dynamic load rating, radial	C_r	9,800
Fatigue load limit, radial	C_ur	355	N
Permissible dynamic load outer ring, radial	F_{r per}	7,000

Maximum witdh of thrust washer	B₁	21,50	mm
Width, outer ring	C	15,90	mm
Stop diameter of thrust washer	d₂	27	mm
Width of flats	W	10	mm
Width, eccentric	B_e	16	mm
Thread length (inner)	l_g	8	mm
Minimum thread length	I_{G min}	25	mm

Bolt/stud length effectively	B₂	45	mm
Protrusion outer ring to thrust washer	C₁	2,50	mm
Minimum chamfer dimension	r_min	0,60	mm
Eccentricity	e	1	mm
Thread inside	g	M8X1
Gewinde		M14
Radius of outer ring outside profile	R	500	mm
