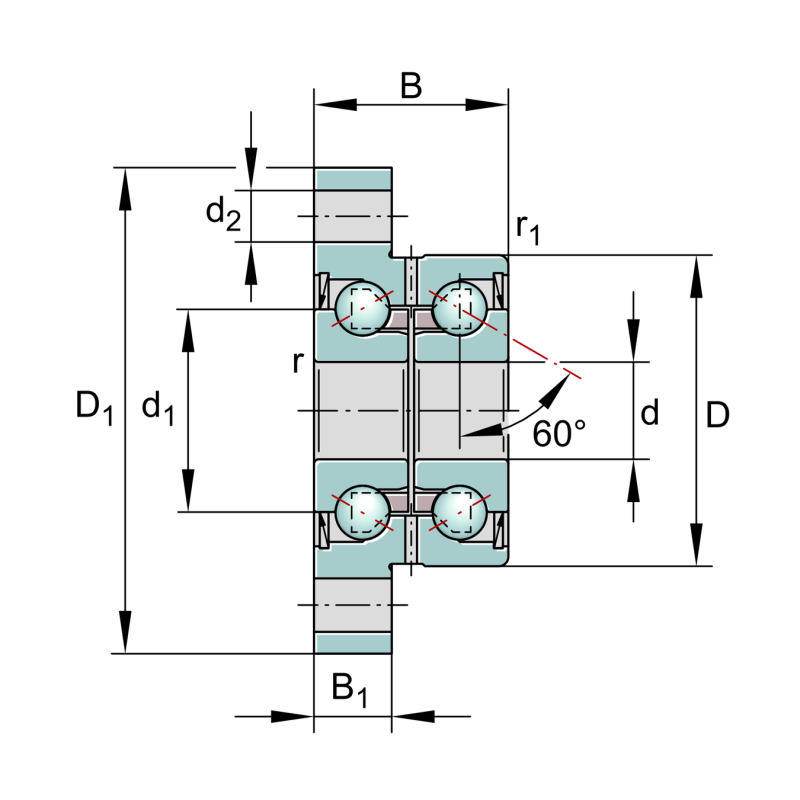

| Bore diameter | d | 6 | mm |
| Bore diameter lower tolerance | 0 | mm | |
| Outside diameter lower tolerance | -0,01 | mm | |
| Width lower tolerance | -0,25 | mm | |
| Basic static load rating, axial | C0a | 8,500 | |
| Limiting speed for grease lubrication | nG Grease | 16,400 |
| Bore diameter upper tolerance | 0 | mm | |
| Außen-Ø | D | 24 | mm |
| Breite | B | 15 | mm |
| Basic dynamic load rating, axial | Ca | 6,900 | |
| Fatigue load limit, axial | Cua | 385 | N |
| Minimum diameter shaft shoulder | da min | 9 | mm |
| Screw size | M4 |
| Maximum diameter of shaft shoulder | da max | 18 | mm |
| Number of screws | n | 4 |
| Rib diameter inner ring | d1 | 14 | mm |
| Thickness of flange | C1 | 6 | mm |

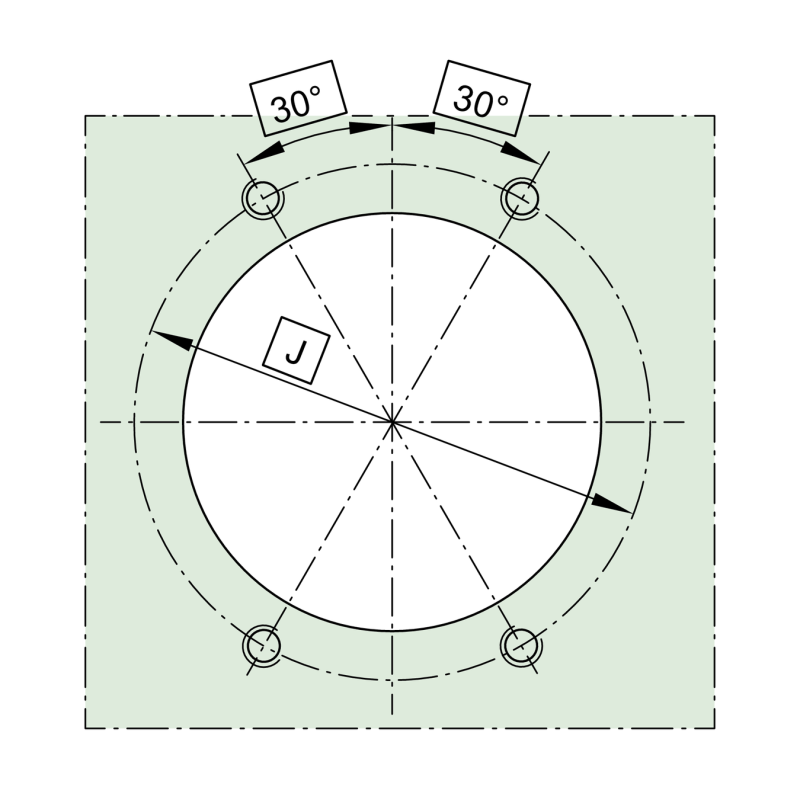

| Pitch circle diameter (holes) | J | 32 | mm |
| Minimum chamfer dimension | rmin | 0,60 | mm |
| Fixing boring diameter | d2 | 4,50 | mm |

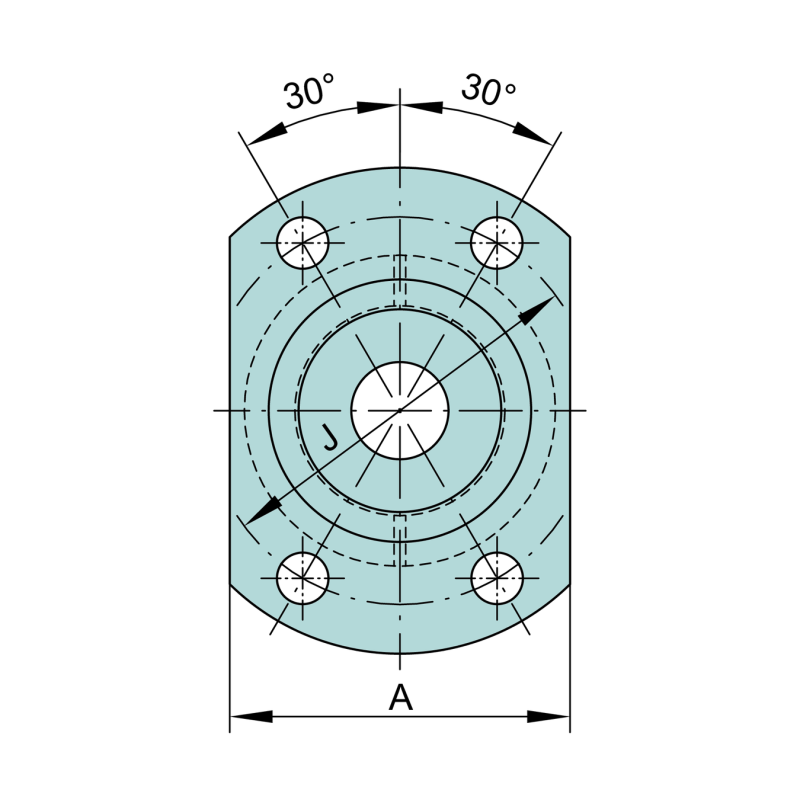

| Flange width | A | 27 | mm |
