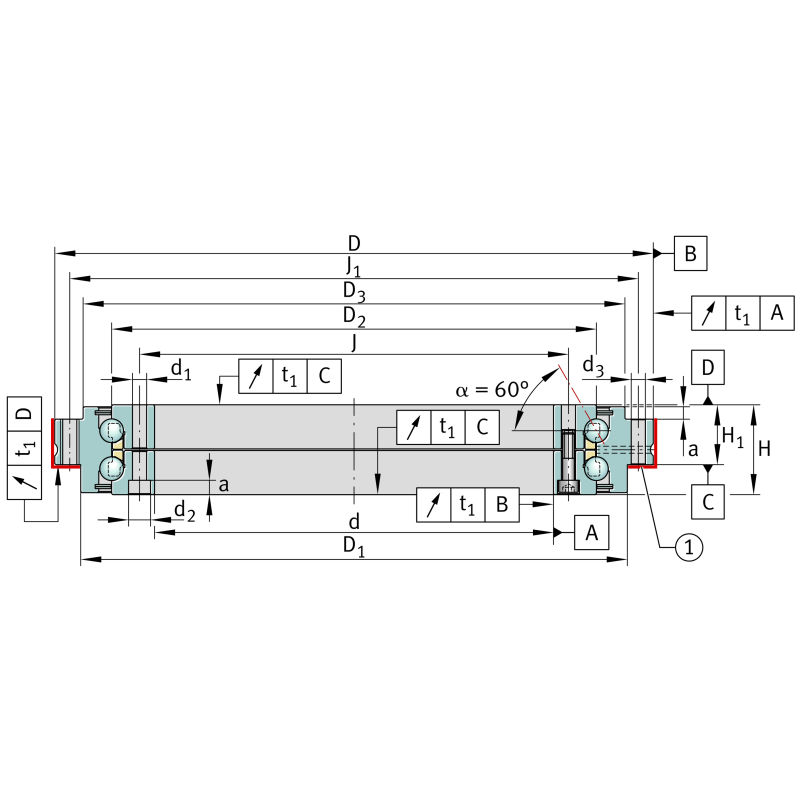

| Bore diameter | d | 150 | mm |
| Flange diameter | D | 240 | mm |
| Höhe | T | 40 | mm |
| Basic dynamic load rating, axial | Ca | 81,000 | |
| Fatigue load limit, axial | Cua | 12,600 |
| Bore diameter lower tolerance | -0,01 | mm | |
| Flange diameter lower tolerance | -0,02 | mm | |
| Limiting speed | nG | 3,600 | |
| Basic static load rating, axial | C0a | 380,000 |
| Pitch circle diameter fixing holes in inner ring | J | 165 | mm |
| Fixing holes diameter inner ring | d1 | 7 | mm |
| Counterbore depth of fixing holes | a | 6,20 | mm |
| Fixing holes diameter outer ring | d3 | 7 | mm |

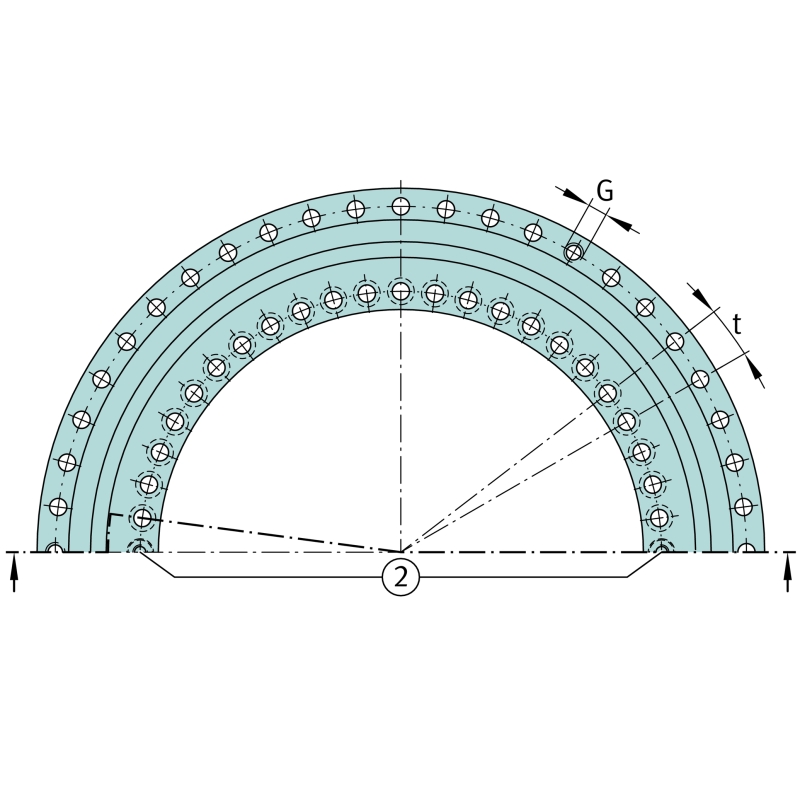

| Pitch quantity | n | 36 | |
| Threaded extraction hole | G | M8 | |
| Screw tightening torque | MA | 10,32 | Nm |
| Pitch circle diameter fixing holes in outer ring | J1 | 225 | mm |
| Counterbore diameter of fixing holes | d2 | 11 | mm |
| Quantity of fixing holes inner ring | 34 | ||
| Quantity of fixing holes outer ring | 33 | ||
| Pitch separation angle | t | 10 | ° |
| Quantity of threaded extraction hole | 3 | ||
| Quantity of retaining screws | 2 |
| Height contact face outer ring | H1 | 26 | mm |
| Height contact face outerring H1 lower tolerance | -0,18 | mm | |
| Rib diameter inner ring | d1 | 188 | mm |
| Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. | t1 | 3 | µm |
| Height contact face outerring H1 upper tolerance | 0,18 | mm | |
| Outside diameter D1 | D1 | 214 | mm |
| Outside diameter D3 | D3 | 211 | mm |
| Hersteller | Teilenummer |
|---|---|
| S4M | SEL/D150 |
