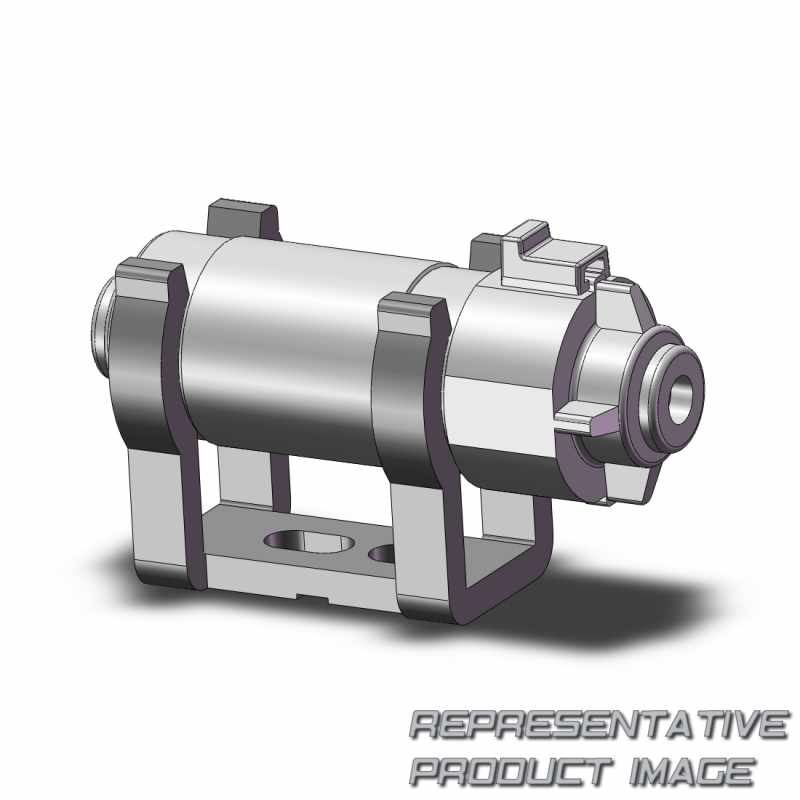

SMC ZFC53-B

Name: ZFC53-B SMC
Brand: SMC
SKU: 745857-de-eur
Price: 13.06 EUR
Availability: InStock

13,06 € ~~17,83 €~~ -26%

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Breite	19mm

Gewicht	11g

Baureihe		zfc5
port size(applicable tubing o.d.) - inch size		?5/32andquot;
Betriebsdruck		100 kpa to 1.0 mpa
flow rate l/min		10
operating and ambient temperature range c		0 to 60
element replacement differential pressure mpa		0.1 (vacuum pressure 20 kpa)
applicable tubing material		nylon, soft nylon, polyurethane
internal capacity cm3		4,50
total width mm		19
case material		polycarbonate

port size(applicable tubing o.d.) - metric size		?4
fluid		air, nitrogen
flow rate l/min note)		45
proof pressure mpa		1,50
filtration ?m		5 (filtration efficiency 95%)
filtration area mm2		750
weight g		10,50
total length mm		53,90
bracket total length mm		23
Gewicht		.02314 lb
