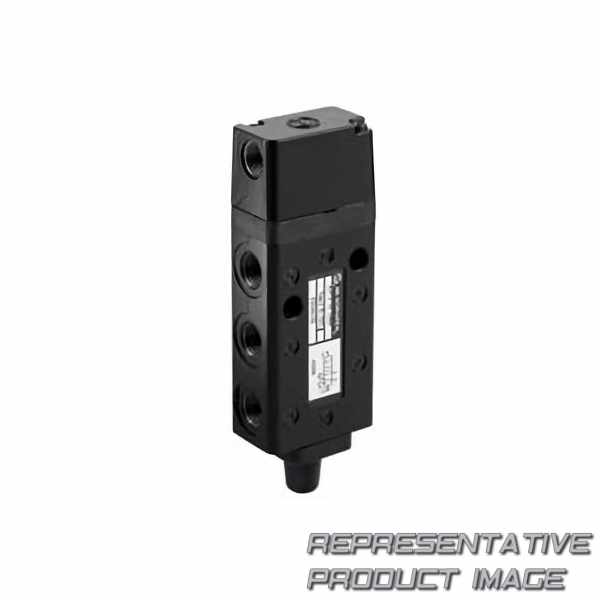

NORGREN X3064102 super x 5/2 air pilot actuated valve

393,29 € 1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Actuation Type	air pilot / air spring return
max. Druck	-0.93 ... 10 bar

Dichtung	nitrile rubber
Gewicht	470g

actuation		air pilot / air spring return
data performance b10 value number of cycles		1000000
eu country of origin		china
flow flow litresperminute		965 l/m
Medium		compressed air
operating pressure pressure bar min to max range		-0.93 ... 10 bar
operating temperature f temperature fahrenheit min to max range		32 ... 158 °f
pilot pressure pressure bar min to max range		3 ... 10 bar
product style		in-line spool
Dichtungen		nitrile rubber
valve operation		5/2

body		zinc alloy
data performance shelf life		3 years
flow flow dm3sec		16.08 dm3/sec
flow imperial flow scfm		34.07 scfm
mil spec		available on request
operating pressure psi pressure psi min to max range		-13 ... 145 psi
operating temperature temperature celsius min to max range		0 ... 70 °c
Anschlussgröße		g1/4
range		super x
Baureihe		super x
