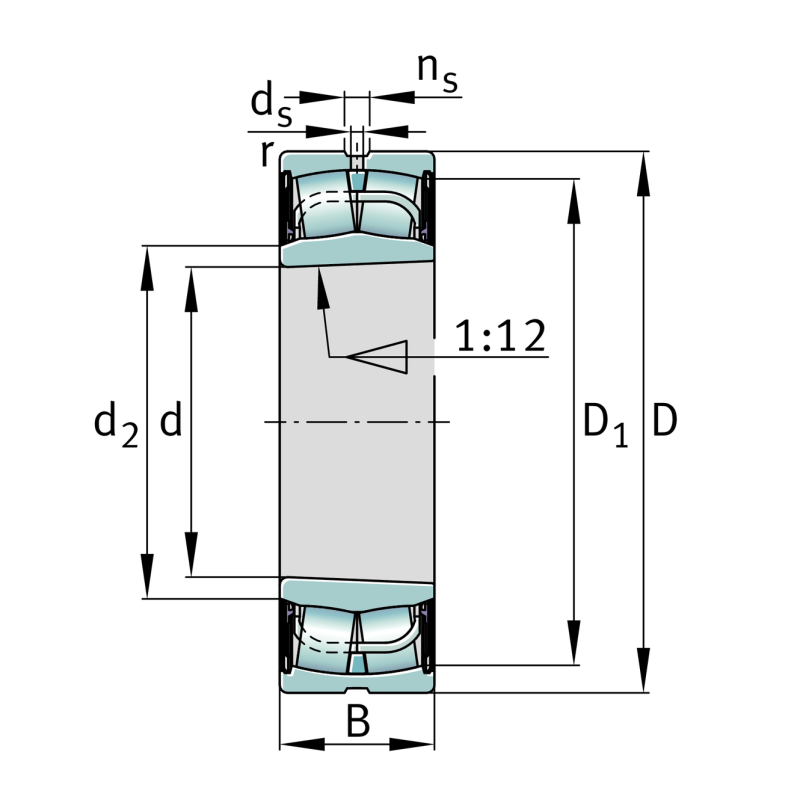

| Bore diameter | d | 40 | mm |
| Breite | B | 28 | mm |
| Basic static load rating, radial | C0r | 91,000 | |
| Limiting speed | nG | 2,600 |
| Außen-Ø | D | 80 | mm |
| Basic dynamic load rating, radial | Cr | 101,000 | |
| Fatigue load limit, radial | Cur | 12,100 |

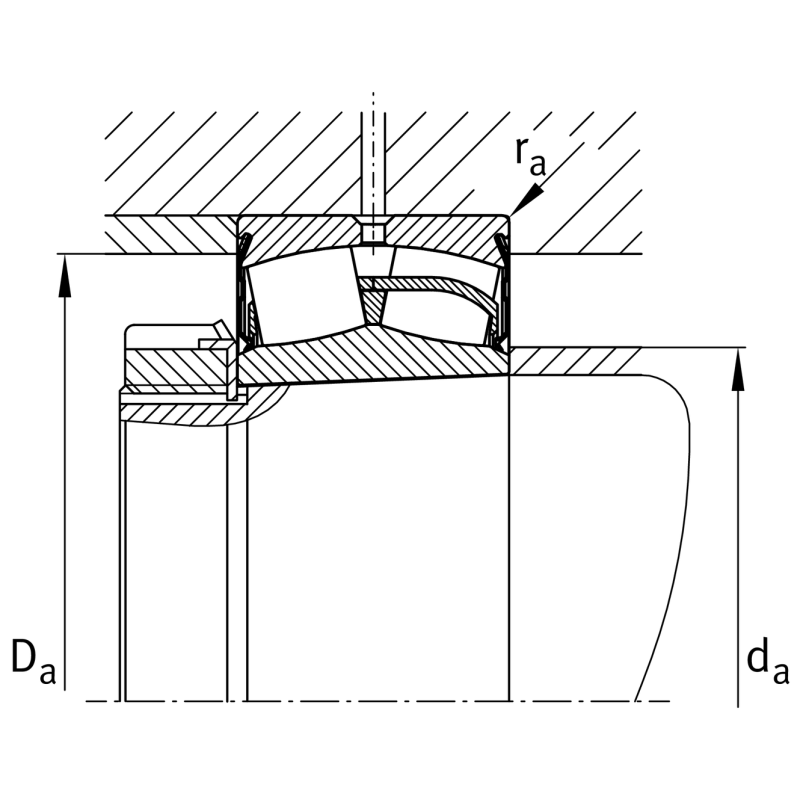

| Minimum diameter shaft shoulder | da min | 45,90 | mm |
| Maximum diameter of housing shoulder | Da max | 73 | mm |
| Minimum cavity diameter of the sleeve | db min | 44 | mm |
| Maximum diameter of shaft shoulder | da max | 45,90 | mm |
| Maximum recess radius | ra max | 1 | mm |
| Minimum cavity width of the sleeve | Ba min | 5 | mm |
| Minimum chamfer dimension | rmin | 1,10 | mm |
| Raceway diameter of the inner ring | d2 | 45,90 | mm |
| Width of lubricating groove | ns | 4,80 | mm |
| Bore diameter outer ring | D1 | 72,60 | mm |
| Diameter lubrication hole | ds | 3,20 | mm |
