FESTO VZWE
10 Produkte

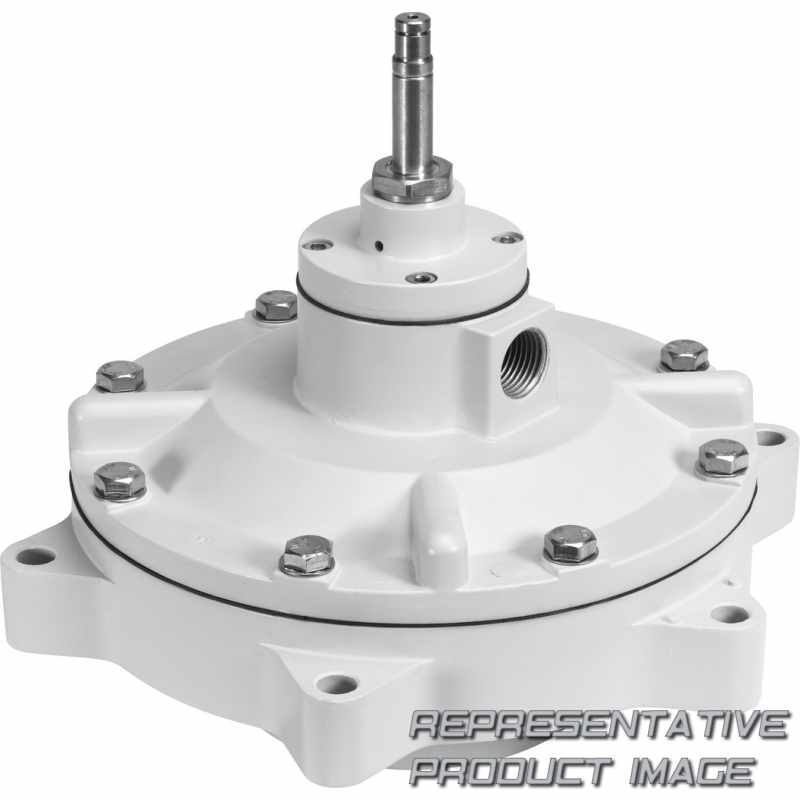

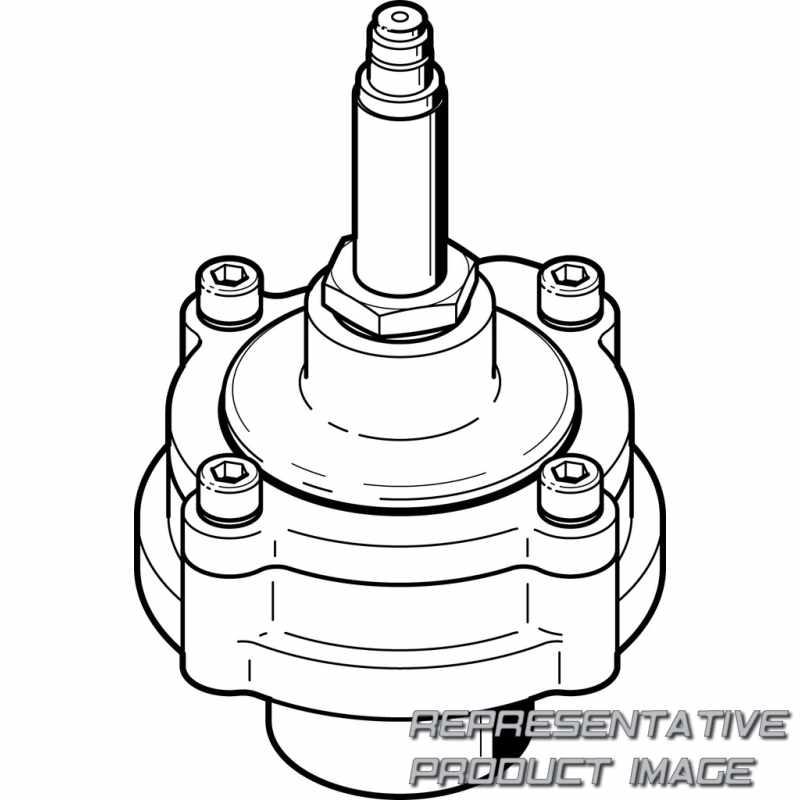

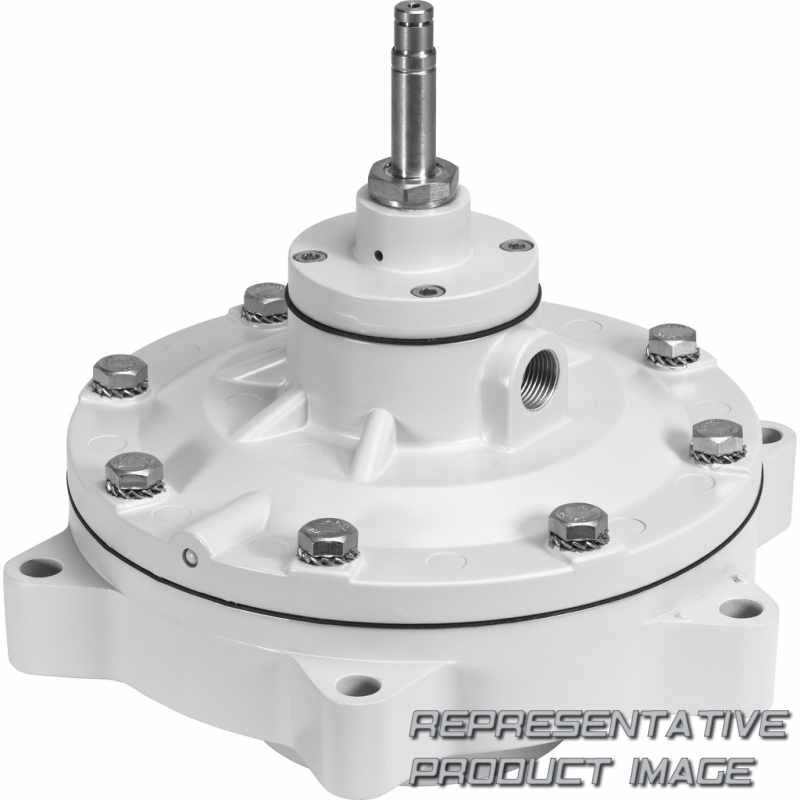

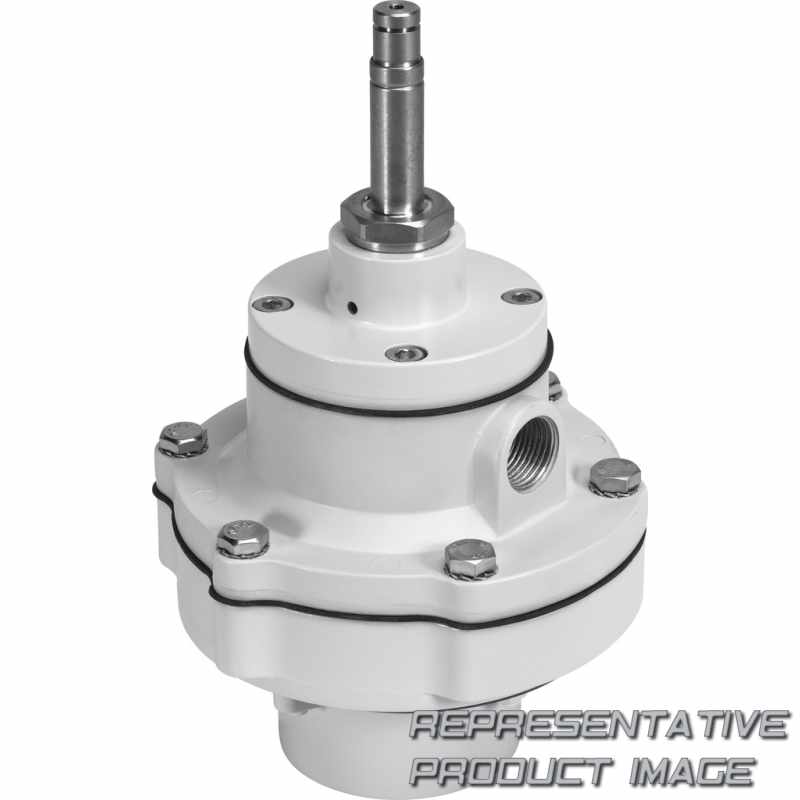

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VZWE – Reverse jet pulse valve. Finden Sie das passende Produkt durch Filtern mit Mounting type, Process valve connection und Nominal width mm.
VZWE Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VZWE | VZWE- -M22C-M- - -H | Reverse jet pulse valve |
Typcode zur Katalognummer VZWE,
VZWE- -M22C-M- - -H
| 001 | Series |
|---|---|
| VZWE | Reverse jet pulse valve |
| 002 | Mounting type |
| E | Straight version |
| F | Flange version |
| 003 | Valve function |

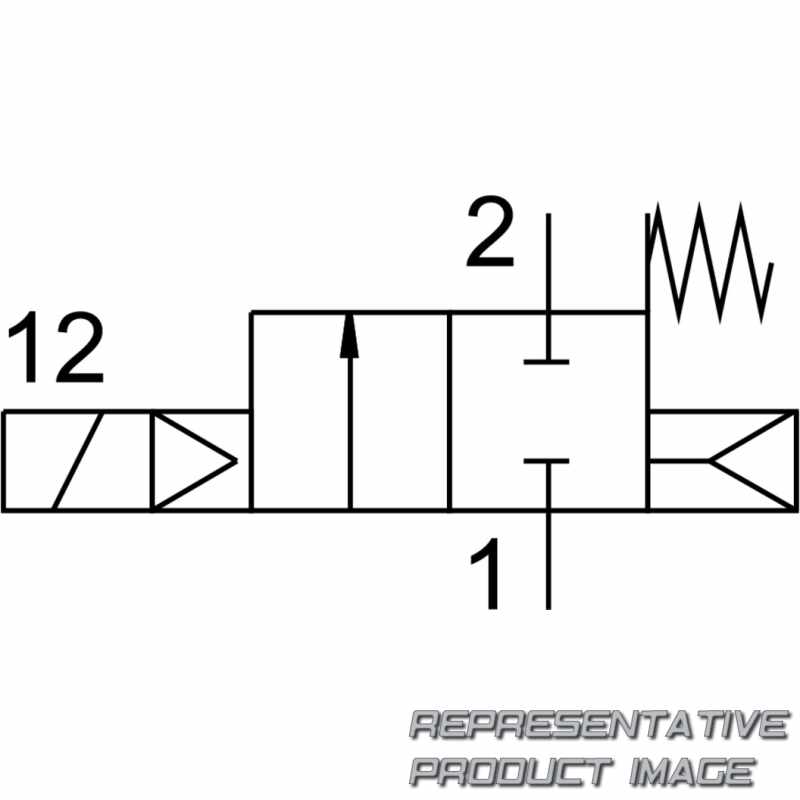

| M22C | 2/2-way valve, normally closed |
| 004 | Reset method for monostable/single solenoid valves |
| M | Mechanical spring |
| 005 | Process valve connection |
| G34 | G 3/4 thread |
| G1 | G1 thread |
| G112 | G1 1/2 thread |
| G2 | G2 thread |
| G212 | G2 1/2 thread |
| F600 | Flange 60 mm |
| F750 | Flange 75 mm |
| F890 | Flange 89 mm |
| 006 | Nominal width mm |
|---|---|
| 200 | 20 mm |
| 250 | 25 mm |
| 400 | 40 mm |
| 500 | 50 mm |
| 620 | 62 mm |
| 760 | 76 mm |
| 007 | Design suffix |
| H | Standard version with NBR seals and IP65 |
