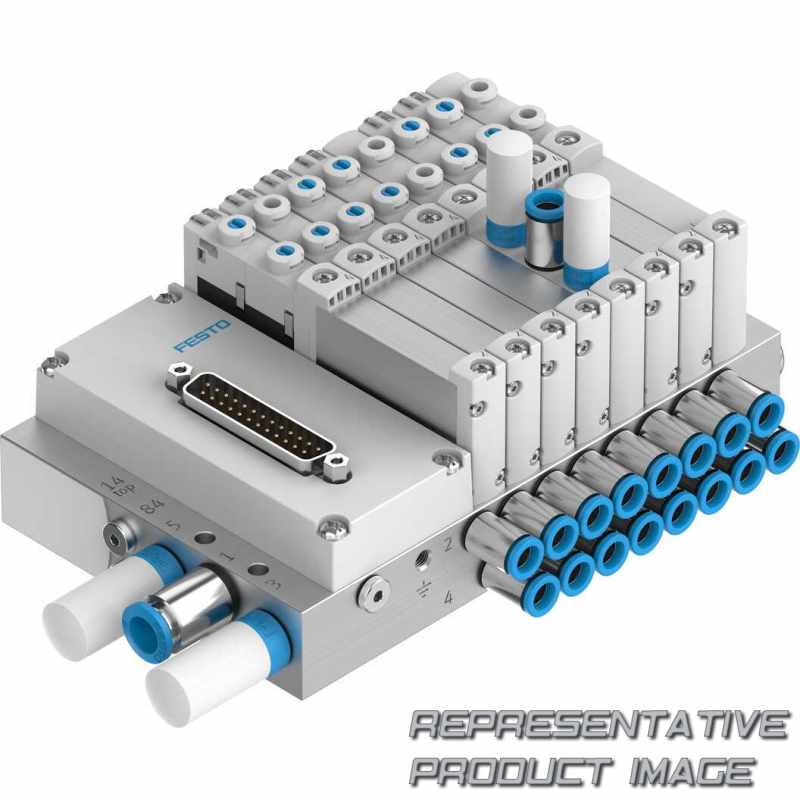

FESTO VTUG
98 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VTUG – Valve terminal. Finden Sie das passende Produkt durch Filtern mit Baugröße, Valve control, Multi-pin plug connection type, Bus protocol/activation, Valve type, Handhilfsbetätigung, Pilot air, Number of pins, Pin allocation, Compressed air supply connection, Compressed air supply connection position, Compressed air supply connection type und Exhaust connection.
VTUG Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VTUG | VTUG- - -R- -1- - | Valve terminal |
Typcode zur Katalognummer VTUG,
VTUG- - -R- -1- -
| 001 | Series |
|---|---|
| VTUG | Valve terminal |
| 002 | Size |
| 10 | Size 10 |
| 14 | Size 14 |
| 18 | Size 18 |
| 003 | Valve control |
| M | Multi-pin |
| V | Interface for fi eldbus module |
| 004 | Multi-pin plug connection type |
| None | |
| RC | Ribbon cable |
| SD | Sub-D plug |
| 005 | Circuitry |
| R | Holding current reduction with integrated protective circuit |
| 006 | Bus protocol/activation |
| LK | IO-Link® |
| None | |
| AP | CPX-AP interface |
| PT | I-Port interface |
| 007 | Outlet direction of electrical components |
| Top | |
| L | Left |
| 008 | Degree of protection, electrical system |
| S8 | IP67 |
| Standard | |
| 009 | Valve type |
| B | Sub-base valve |
| S | Semi-inline valve |
| 010 | Nominal operating voltage |
| 1 | 24 V DC |
| 011 | Manual override |
| None | |
| H | Non-detenting |
| S | Covered |
| T | Non-detenting, detenting with accessories |
| Y | Detenting |
| 012 | Pilot air |
| Internal | |
| Z | External |
| 013 | Additional function |
| None | |
| L | Interlock |
| 014 | Number of pins |
| None | |
| 25 | 25-pin |
| 26 | 26-pin |
| 44 | 44-pin |
| 50 | 50-pin |
| 015 | Pin allocation |
|---|---|
| Standard | |
| V20 | For 12 double solenoid/bistable or 24 single solenoid/monos- table valves |
| V21 | For 18 double solenoid/bistable and 6 single solenoid/monos- table valves |
| V22 | For 10 double solenoid/bistable valves |
| V23 | For 8 double solenoid/bistable and 4 single solenoid/monosta- ble valves |
| V24 | For 4 double solenoid/bistable and 12 single solenoid/monos- table valves |
| V25 | For 20 single solenoid/monostable valves |
| V26 | For 24 double solenoid/bistable valves |
| 016 | Material of fittings |
| Standard | |
| B2 | Brass, nickel-plated |
| V1 | Stainless steel |
| 017 | Compressed air supply connection |
| Q6 | Push-in connector 6 mm |
| Q8 | Push-in connector 8 mm |
| Q10 | Push-in connector 10 mm |
| Q12 | Push-in connector 12 mm |
| Q16 | Push-in connector 16 mm |
| G18 | G1/8 |
| G14 | G1/4 |
| G38 | G3/8 |
| T14 | Push-in connector 1/4” |
| T516 | Push-in connector 5/16” |
| T38 | Push-in connector 3/8” |
| T12 | Push-in connector 1/2” |
| 018 | Compressed air supply connection position |
| Both sides | |
| B | Underneath |
| L | Left |
| R | Right |
| FD | Front, both sides, for control cabinet |
| FDL | Front, left, for control cabinet |
| FDR | Front, right, for control cabinet |
| 019 | Compressed air supply connection type |
| Straight | |
| A | Elbow fitting |
| 020 | Exhaust connection |
| DQ | Push-in fitting |
| DT | Thread |
| U | Silencer |
