FESTO VPPM
152 Produkte

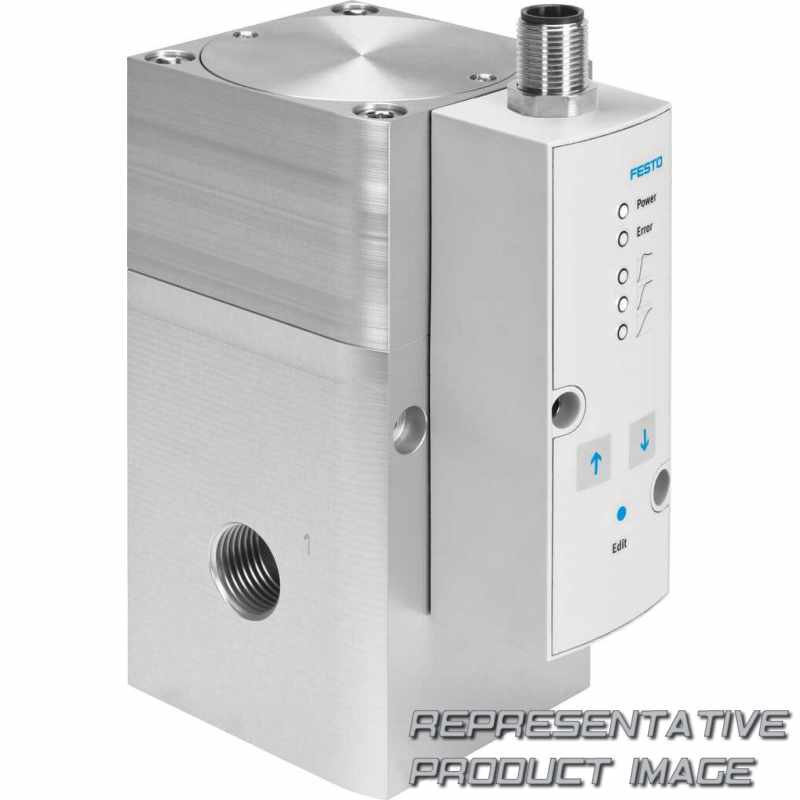

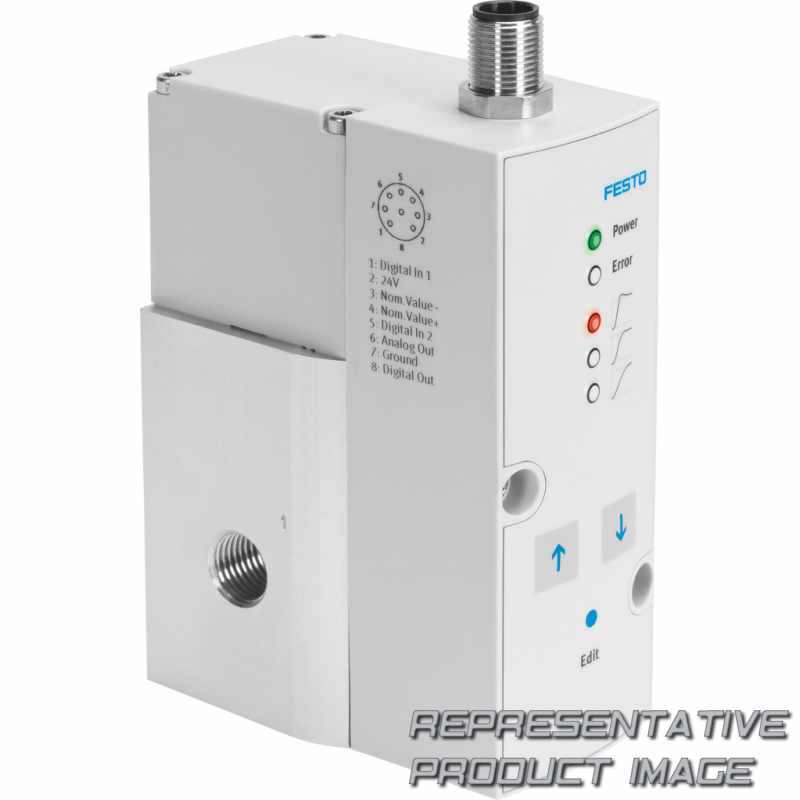

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VPPM – Proportional pressure regulator, modular. Finden Sie das passende Produkt durch Filtern mit Nominal width [mm], Directional control valve type, Mounting method, Pneumatischer Anschluss, Lower pressure value of control range, Upper pressure value of control range, Setpoint input for individual valves, Switching input/output, Overall accuracy 2% und Operator unit/interface.
VPPM Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VPPM | VPPM- - -L-1- - - | Proportional pressure regulator, modular |
Typcode zur Katalognummer VPPM,
VPPM- - -L-1- - -
| 001 | Series |
|---|---|
| VPPM | Proportional pressure regulator, modular |
| 002 | Nominal width [mm] |
| 6 | 6 |
| 8 | 8 |
| 12 | 12 |
| 003 | Directional control valve type |
| L | In-line valve |
| F | Flanged valve |
| T | Flanged valve for valve terminal |
| 004 | Mounting method |
| Standard | |
| A | Valve terminal MPA |
| 005 | Dynamic response |
| L | Low |
| 006 | Valve function |
| 1 | 3/2-way valve, normally closed |
| 007 | Pneumatic connection |
| N18 | 1/8 NPT |
| N14 | 1/4 NPT |
| N12 | 1/2 NPT |
| F | Flange/sub-base |
| G18 | G1/8 |
| G14 | G1/4 |
| G12 | G1/2 |
| 008 | Lower pressure value of control range |
| 0L | 0 bar |
| 0.5L | 0 - 0.5 bar |
| 1L | 0 - 1 bar |
| 009 | Upper pressure value of control range |
|---|---|
| 2H | 2 bar |
| 3H | 3 bar |
| 6H | 6 bar |
| 10H | 10 bar |
| 010 | Alternative lower pressure regulation range |
| None | |
| ...L | 0 ... 9 bar |
| 011 | Alternative upper pressure regulation range |
| None | |
| ...H | 0.2 ... 10 bar |
| 012 | Setpoint input for individual valves |
| For valve terminals/servo-pneumatics | |
| A4 | 4 ... 20 mA |
| LK | lO-Link® |
| V1 | 0 ... 10 V |
| 013 | Switching input/output |
| None | |
| N | NPN |
| P | PNP |
| 014 | Overall accuracy 2% |
| None | |
| S1 | 1 % |
| 015 | Operator unit/interface |
| None | |
| C1 | With LCD, variable pressure unit |
