FESTO VPPL
20 Produkte

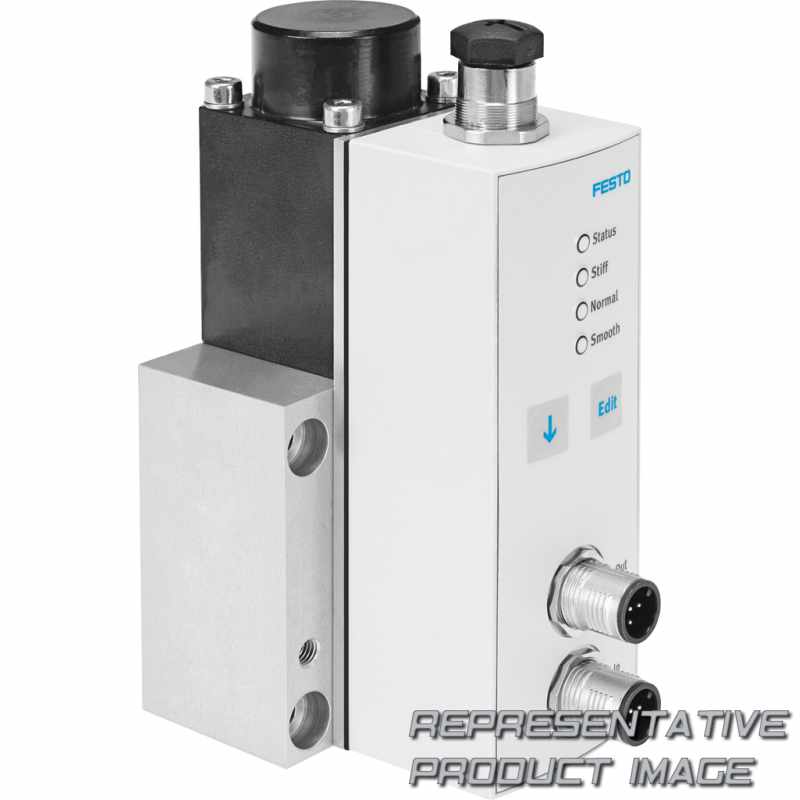

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO VPPL – Proportional pressure regulator. Finden Sie das passende Produkt durch Filtern mit Mounting method, Directional control valve type, Pneumatischer Anschluss, Lower pressure value of control range, Upper pressure value of control range, Setpoint input for individual valves, Electrical output 1 und Variant.
VPPL Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| VPPL | VPPL-3-3- - - - -S1- | Proportional pressure regulator |
Typcode zur Katalognummer VPPL,
VPPL-3-3- - - - -S1-
| 001 | Series |
|---|---|
| VPPL | Proportional pressure regulator |
| 002 | Nominal width [mm] |
| 3 | 3 |
| 003 | Mounting method |
| Standard | |
| Q | Flange |
| 004 | Directional control valve type |
| None | |
| L | In-line valve |
| 005 | Valve function |
| 3 | 3/3-way valve, normally closed |
| 006 | Pneumatic connection |
| Flange | |
| G14 | G1/4 |
| Z | Flange/thread combination for connection 1 (external pilot air) |
| 007 | Lower pressure value of control range |
| 0L | 0 bar |
| 2L | 2 bar |
| 008 | Upper pressure value of control range |
| 20H | 20 bar |
| 40H | 40 bar |
| 009 | Setpoint input for individual valves |
|---|---|
| A4 | 4 ... 20 mA |
| V1 | 0 ... 10 V |
| 010 | Electrical output 1 |
| A | 4 ... 20 mA |
| V | 0 ... 10 V |
| 011 | Overall accuracy |
| S1 | 1 % |
| 012 | Variant |
| 1 | Variant 1 |
| 2 | Variant 2 |
| 3 | Variant 3 |
| 4 | Variant 4 |
| 5 | Variant 5 |
| 6 | Variant 6 |
| 7 | Variant 7 |
| 8 | Variant 8 |
