| Werkstoff Gehäuse | Wrought aluminium alloy PA-reinforced | ||
| Mounting with vertical stacking | On manifold sub-base On individual sub-base | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| Korrosionsbeständigkeitsklasse KBK | 2 - Moderate corrosion stress | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Standard nominal flow rate ventilation | 103 l/min | ||

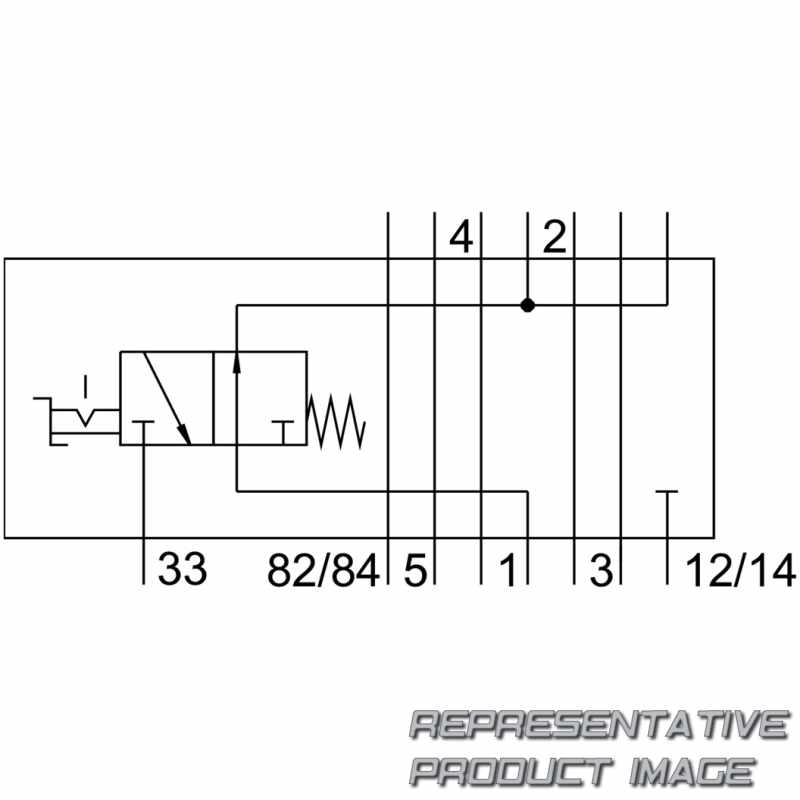

| Symbol | 00991889 | ||
| Einbaulage | optional |
| Werkstoff-Hinweis | RoHS-compliant | ||
| Produktgewicht | 60 g | ||
| Schutzart | IP65 | ||
| Hinweis zum Betriebs-/Steuermedium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Standard nominal flow rate for exhaust | 213 l/min | ||
| Betriebsdruck | 3 bar ... 8 bar | ||
| Vertical pneumatic linkage | Shut-off for 1 | ||
| Baubreite | 10 mm |
