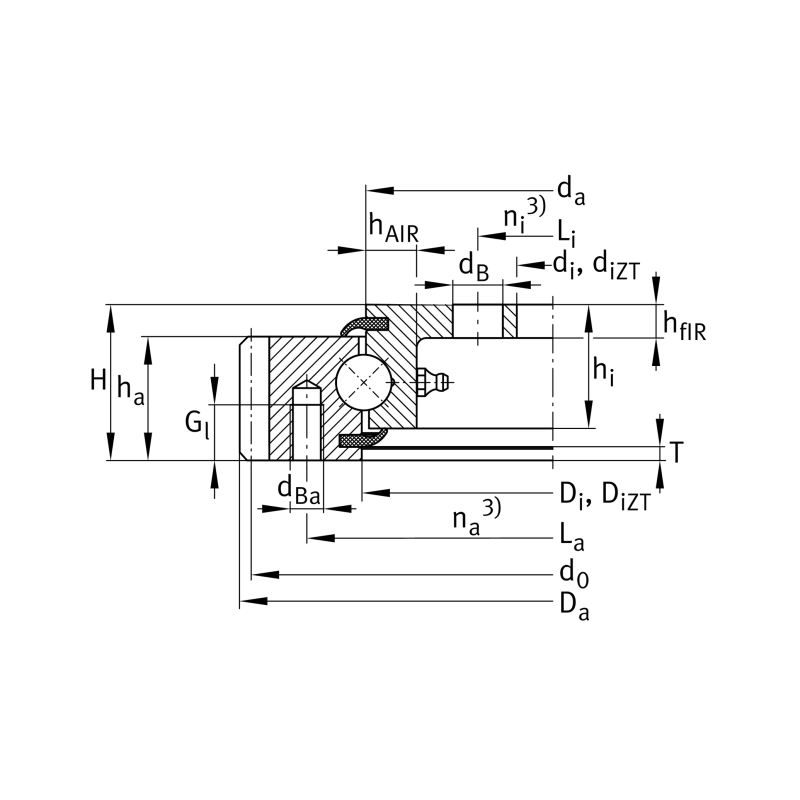

| Bore diameter | d | 834 | mm |
| height of flange | hf IR | 12 | mm |
| Außen-Ø | D | 1,046.1 | |
| Width Outer ring | C | 44,50 | mm |
| Bore diameter upper tolerance | 0,70 | mm | |
| Höhe | T | 56 | mm |
| Length centering inner ring | t | 12 | mm |
| height of individual ring | hi | 44,50 | mm |
| Inner diameter outer ring upper tolerance | 0,70 | ||
| Outside diameter inner ring lower tolerance | -0,70 | mm | |
| Pitchcircle diameter fixing holes inner ring | Li | 862 | mm |
| Number of fixing holes in outer ring | na | 20 | |
| Tread fixing bore | dBa | M12 | |
| Ring cross section | hA | 20 | mm |
| Pitch circle diameter gearing | d0 | 1,032 | |
| Number of teeth | z | 129 | |
| Max. tooth force against tooth fracture (at a shock factor of 1,35) | Fz max | 42,000 |
| Outside diameter inner ring | da | 942,50 | mm |
| Number of fixing holes in inner ring | ni | 20 | |
| Fixing bore | dB | 18 | mm |
| Pitchcircle diameter fixing holes outer ring | La | 985 | mm |
| Thread depth fixing hole | Gl | 20 | mm |
| Max. radial load fixing screws (friction locking) | Fr zul | 82,600 | |
| Modul of gearing | m | 8 | mm |
| Max. tooth force root fatigue strenght (at a shock factor of 1,2) | Fz norm | 28,300 |
