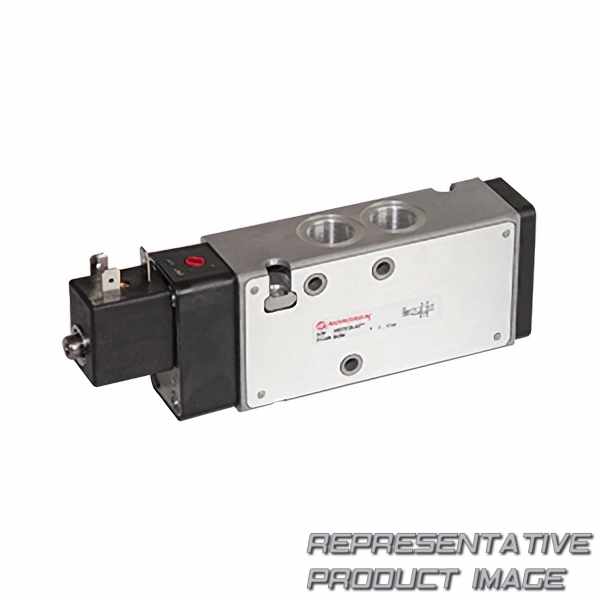

NORGREN V62C513A-A213J inline valves - solenoid

150,84 € 7 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Actuation Type	solenoid pilot / air spring return
max. Druck	2 ... 10 bar

Versorgungsspannung	24vdc

actuation		solenoid pilot / air spring return
data performance b10 value number of cycles		8000000
eu country of origin		czechia
flow flow dm3sec		43.33 dm3/sec
Handhilfsbetätigung		locking
mil spec		available on request
operating pressure psi pressure psi min to max range		29 ... 145 psi
operating temperature temperature celsius min to max range		-10 ... 50 °c
range		v60…63
springs		stainless steel
voltage		24vdc

body		aluminium
data performance shelf life		3 years
Features		high flow rate
flow flow litresperminute		2600 l/m
Medium		compressed air
operating pressure pressure bar min to max range		2 ... 10 bar
operating temperature f temperature fahrenheit min to max range		14 ... 122 °f
Anschlussgröße		g3/8
spool		stainless steel
valve operation		5/2
