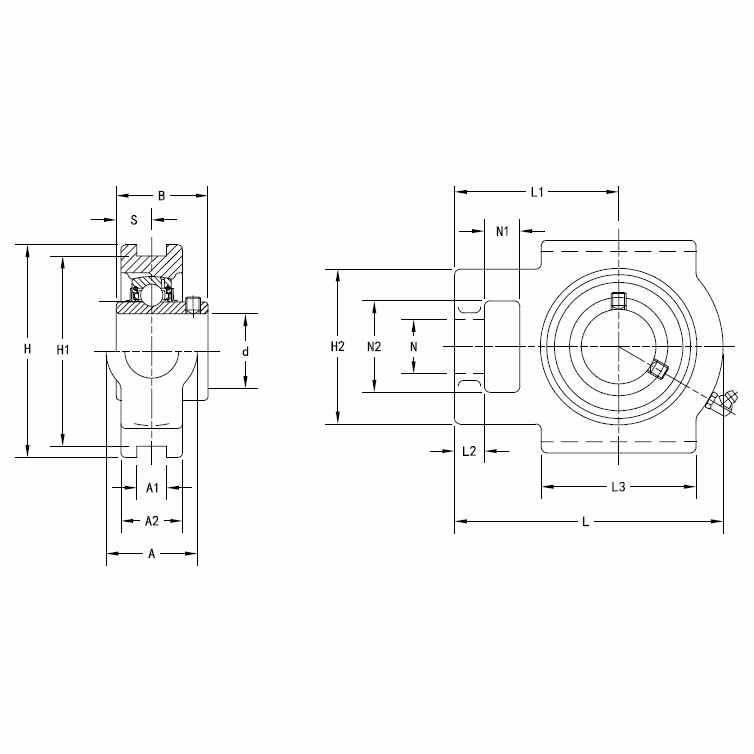

| Housing Width A | 49 | mm | |
| Socket Width A2 | 33 | mm | |
| Pitch Height H1 | 102 | mm | |
| Total Length L | 144 | mm | |
| Abmessung L2 | 16 | mm | |
| Adjustment Screw Bore N | 29 | mm | |
| Opening Height N2 | 49 | mm | |
| Center of Bearing from End S | 19 | mm |
| Slot Width A1 | 16 | mm | |
| Total Height H | 114 | mm | |
| Height H2 | 83 | mm | |
| Shaft Length L1 | 88 | mm | |
| Slot Length L3 | 83 | mm | |
| Opening Width N1 | 19 | mm | |
| Inner Ring Width B | 49,20 | mm | |
| Grease Nipple Size | A-1/4-28UNF |
| Bearing Number | UC208 | ||
| UPC Code | 87.796.077.782 | ||
| Housing Construction | Take-Up |
| Shaft Size d | 40 | mm | |
| Locking Style | Set Screw Locking | ||
| Gewicht | 2,50 | Kg |
