| Brand | SNR | ||

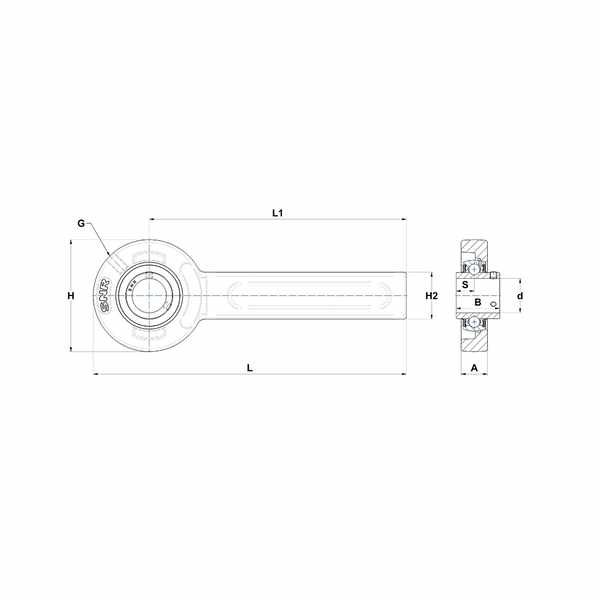

| G - Grease fitting | R1/8" | ||
| H2 - Housing height / width | 41 mm | ||
| L1 - Distance attachment end face to bearing centerline | 225 mm | ||
| C - Dynamic load rating | 25,7 kN | ||
| Operating temperature min. | -20 °C | ||
| Stretcher frame 2 | SPR11 | ||
| Stretcher frame 4 | SPR14 |
| A - Housing width | 21 mm | ||
| H - Housing length, width or diameter | 98 mm | ||
| L - Housing length | 274 mm | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 17,5 mm | ||
| C0 - Static load rating | 15,2 kN | ||
| Operating temperature max. | 100 °C | ||
| Stretcher frame 3 | SPR12 |
