| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 15,2 kN | ||

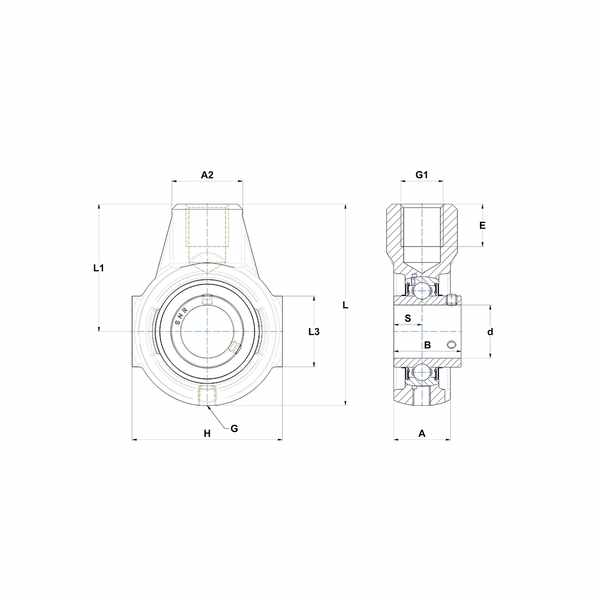

| S - Dist. cent. of raceway to face IR on side opp. lock. device | 17,5 mm | ||
| L1 - Distance attachment end face to bearing centerline | 76 mm | ||
| H - Housing length, width or diameter | 90 mm | ||
| G - Grease fitting | R1/8" | ||
| A2 - Width over loc. slot flange(T/ST)/width at mount. hole(EHE) | 40 mm | ||
| Brand | SNR |
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 25,7 kN | ||
| L3 - Length of guidance slot/face | 40 mm | ||
| L - Housing length | 122 mm | ||
| G1 - Thread size | M24 | ||
| E - Mounting hole thread depth | 24 mm | ||
| A - Housing width | 32 mm |
