| Recommended tightening torque for set screw | 3,7 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 19,5 kN | ||

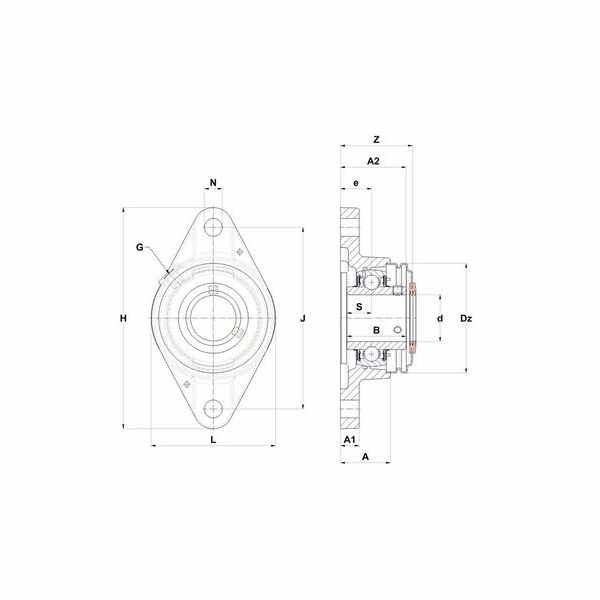

| S - Dist. cent. of raceway to face IR on side opp. lock. device | 15,9 mm | ||
| L - Housing width / diameter | 80 mm | ||
| H - Housing length, width or diameter | 142 mm | ||
| e - Distance mounting surface to bearing center | 20 mm | ||
| A2 - Total height from mounting surface | 42,2 mm | ||
| A - Housing height | 32,1 mm |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 11,2 kN | ||
| Z - Width over covers | 46,3 mm | ||
| N - Mounting hole dimension | 11,5 mm | ||
| J - Mounting holes distance | 116,5 mm | ||
| G - Grease fitting | R1/8" | ||
| Dz - Outer diameter of cover | 70 mm | ||
| A1 - Housing foot height / flange height | 12 mm | ||
| Brand | SNR |
