| Brand | SNR | ||

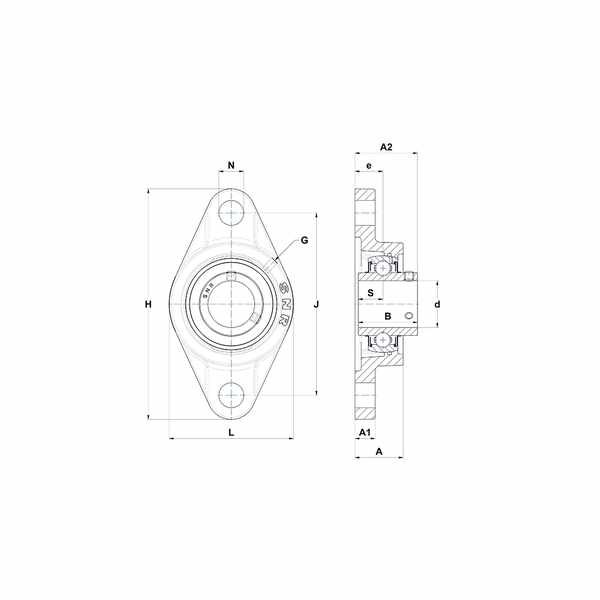

| A1 - Housing foot height / flange height | 14 mm | ||
| e - Distance mounting surface to bearing center | 19 mm | ||
| H - Housing length, width or diameter | 161 mm | ||
| L - Housing width / diameter | 90 mm | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 17,5 mm | ||
| C0 - Static load rating | 15,2 kN | ||
| Operating temperature max. | 200 °C |
| A - Housing height | 34 mm | ||
| A2 - Total height from mounting surface | 44,4 mm | ||
| G - Grease fitting | M6x1 | ||
| J - Mounting holes distance | 130 mm | ||
| N - Mounting hole dimension | 16 mm | ||
| C - Dynamic load rating | 25,7 kN | ||
| Operating temperature min. | -20 °C | ||
| Recommended tightening torque for set screw | 11,5 N-m |
