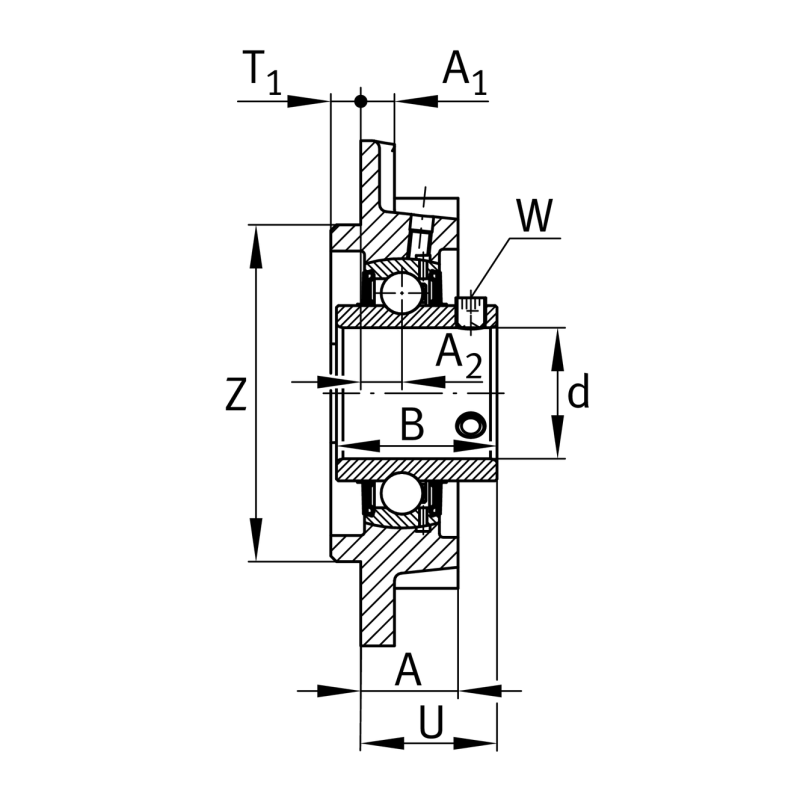

| Bore diameter | d | 25 | mm |
| Total height unit | U | 29,80 | mm |
| Basic static load rating, radial | C0r | 7,800 |
| Height flange | h1 | 115 | mm |
| Basic dynamic load rating, radial | Cr | 14,000 | |
| Fatigue load limit, radial | Cur | 335 | N |

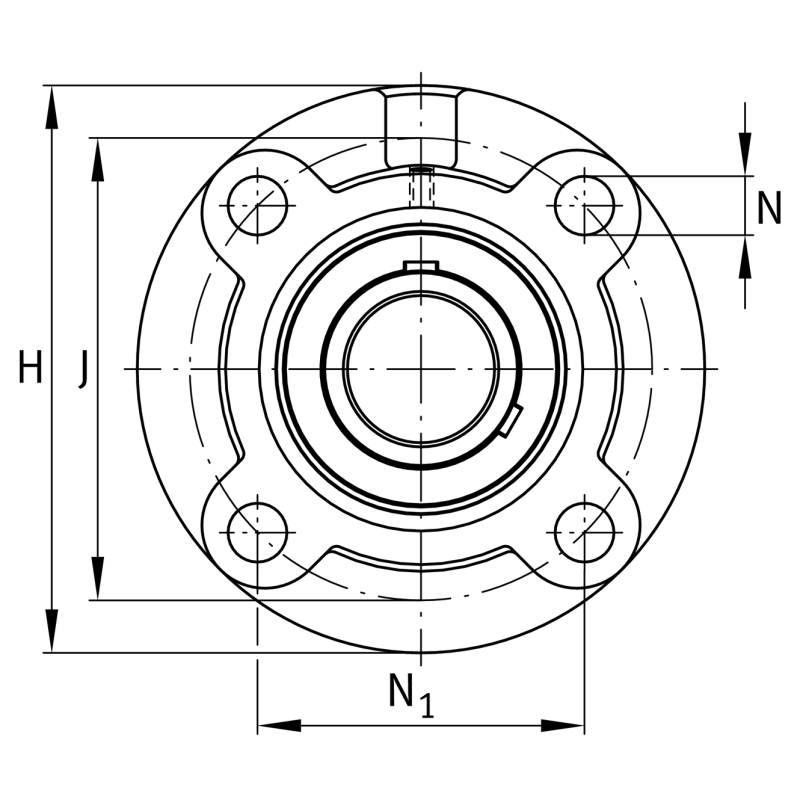

| Pitch circle diameter (holes) | J | 90 | mm |
| Distance fixing bore | J | 63,60 | mm |
| Diameter spigot | Z | 70 | mm |
| Number of screwing holes | n | 4 |
| Fixing bore | N | 12 | mm |
| Height spigot | T1 | 6 | mm |
| Diameter spigot clearance | h8 |
| Thickness of flange | C1 | 7 | mm |
| Breite | B | 34,10 | mm |
| Distance raceway | A2 | 10 | mm |
| connection thread lubrication | M6 |
