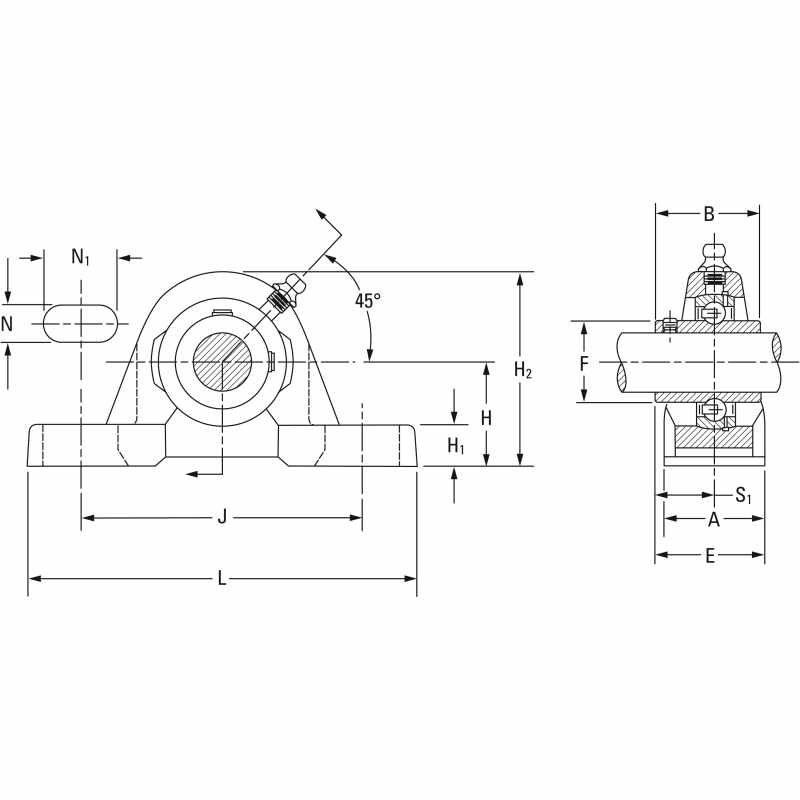

| Base to Center Height H | 36,51 | mm | |
| Total Width A | 37,30 | mm | |
| Bolt Hole Width N | 11,10 | mm | |
| Foot Height H1 | 15,10 | mm | |
| Inside Ring Width B | 34,85 | mm | |
| Abmessung F | 33,83 | mm |
| Total Length L | 139,70 | mm | |
| Bolt Hole Spacing J | 104,80 | mm | |
| Bolt Hole Length N1 | 20,60 | mm | |
| Total Height H2 | 73 | mm | |
| Dimension S1 | 20,56 | mm |
| Shaft Size d | 25 | mm | |
| Bearing Number | GYE25KRRB SGT | ||
| Seal Type | Shroud Seal | ||
| Gewicht | 0,95 | Kg |
| Bearing Type | Ball Bearing | ||
| Baureihe | Industrial | ||
| Housing Construction | Two-Bolt Pillow Block | ||
| Alternate Part Name | YAS25 SGT |
