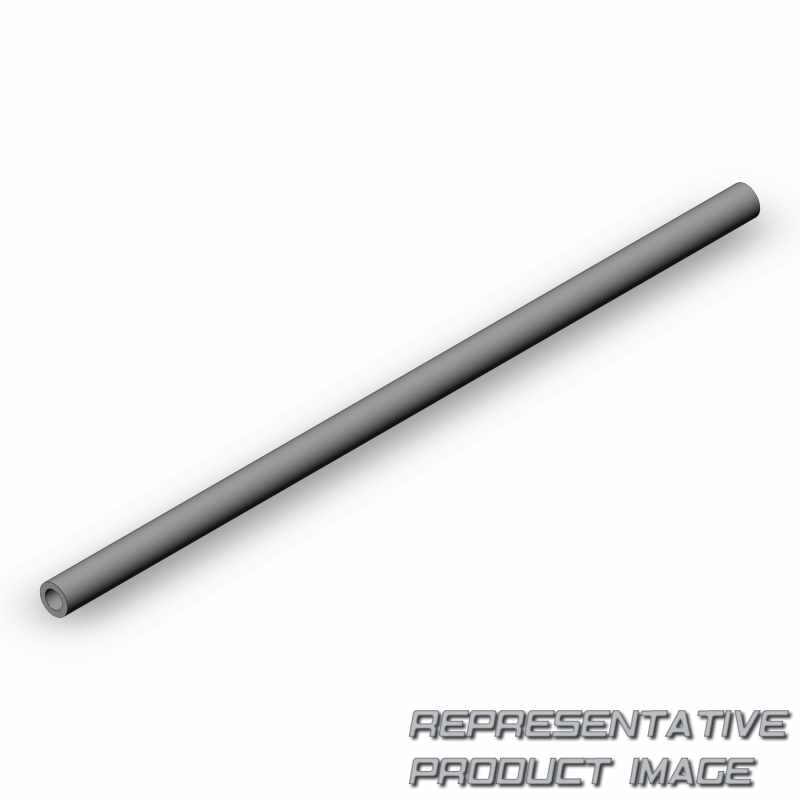

SMC TD0425-20

Name: TD0425-20 SMC
Brand: SMC
SKU: 747556-de-eur
Price: 108.23 EUR
Availability: InStock

108,23 € ~~146,61 €~~ -26%

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Baugröße	03 x 02

Gewicht	372g

Baugröße		metric size
tubing o.d. (mm)		4
roll - 10 m		--
Color		translucent (material color)
applicable fittings note 2)		insert fittingminiature fittings m, ms series (hose nipple type) fluoropolymer fitting lq1 series
max. operating pressure (mpa) - 100c		0,90
max. operating pressure (mpa) - 260c		0,23
min. bending radius (mm) note 3) - refraction value		8
Material		modified ptfe (polytetrafluoroethylene resin)

Baureihe		td0425
tubing i.d. (mm)		2,50
roll - 20 m		--
fluid note 1)		air, water, inert gas
max. operating pressure (mpa) - 20c		1,60
max. operating pressure (mpa) - 200c		0,45
min. bending radius (mm) note 3) - recommended radius		15
max. operating temperature (fixed usage)		260c
Gewicht		.81864 lb
