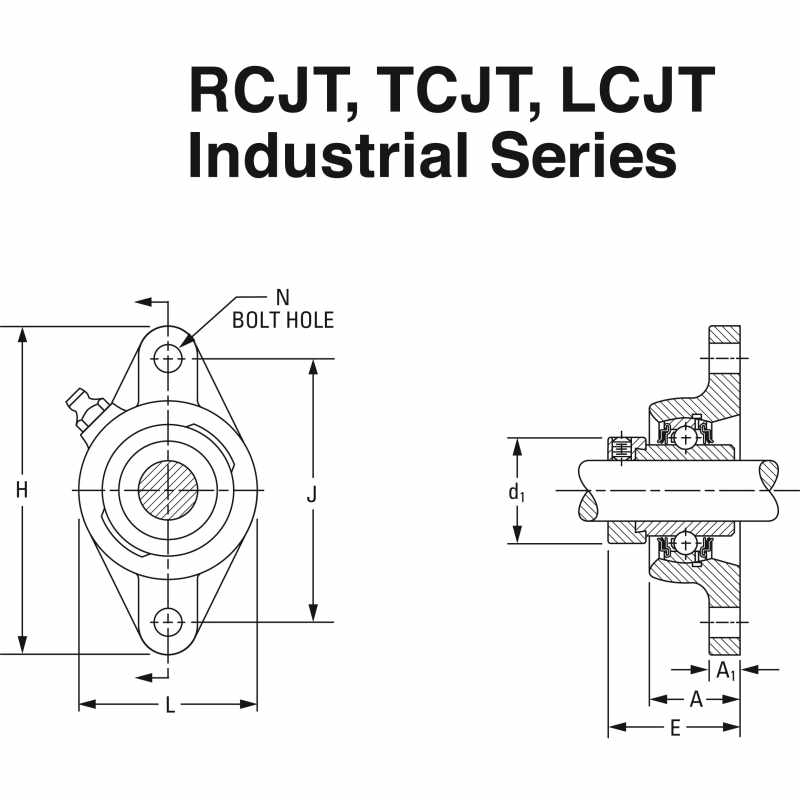

| Total Length H | 155,60 | mm | |
| Housing Width A | 31,80 | mm | |
| Bolt Hole Size N | 13,10 | mm | |
| Abmessung B1 | 51,20 | mm | |
| Abmessung E | 53,50 | mm |
| Total Height L | 92,10 | mm | |
| Bolt Hole Spacing J | 130,20 | mm | |
| Flange Thickness A1 | 11,90 | mm | |
| Dimension S1 | 32,35 | mm | |
| Abmessung d1 | 54 | mm |
| Shaft Size d | 1 1/4 in | ||
| Bearing Number | G1104KPPB2 | ||
| Seal Type | Tri-Ply Seal | ||
| Gewicht | 1,44 | Kg |
| Bearing Type | Ball Bearing | ||
| Baureihe | Industrial | ||
| Housing Construction | Two-Bolt Flange | ||
| Alternate Part Name | TCJT1 1/4 |
