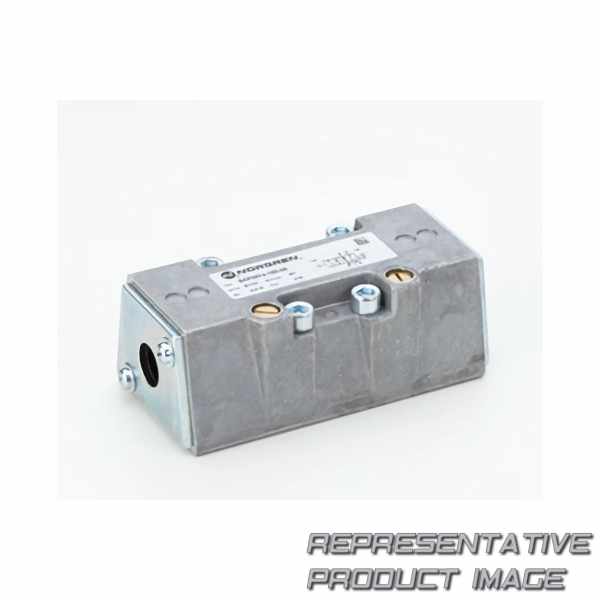

NORGREN SXP0574-180-00 iso star valve

Name: SXP0574-180-00 NORGREN
Brand: NORGREN
SKU: 777738-de-eur
Price: 333.22 EUR
Availability: InStock

333,22 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Actuation Type	air pilot / air pilot
Einbaulage	sub-base

max. Druck	-0.9 ... 16 bar
Dichtung	nitrile rubber

actuation		air pilot / air pilot
data performance b10 value number of cycles		24000000
eu country of origin		czechia
flow flow litresperminute		2450 l/m
fluid temperature temperature celsius min to max range		-15 ... 80 °c
Medium		compressed air
mounting		sub-base
operating pressure pressure bar min to max range		-0.9 ... 16 bar
operating temperature f temperature fahrenheit min to max range		5 ... 176 °f
operator 12		air
Anschlussgröße		iso 2
Schutzklasse		ip65
Dichtungen		nitrile rubber
springs		stainless steel
valve operation		5/2

body		diecast aluminium
data performance shelf life		3 years
flow flow dm3sec		40.83 dm3/sec
flow regulator		yes
iso size		iso #2
mil spec		available on request
nuts and screws		zinc plated steel
operating pressure psi pressure psi min to max range		-13 ... 232 psi
operating temperature temperature celsius min to max range		-15 ... 80 °c
operator 14		air
product style		sub-base
range		sxe
Baureihe		iso star
Standard		vdma 24 345
