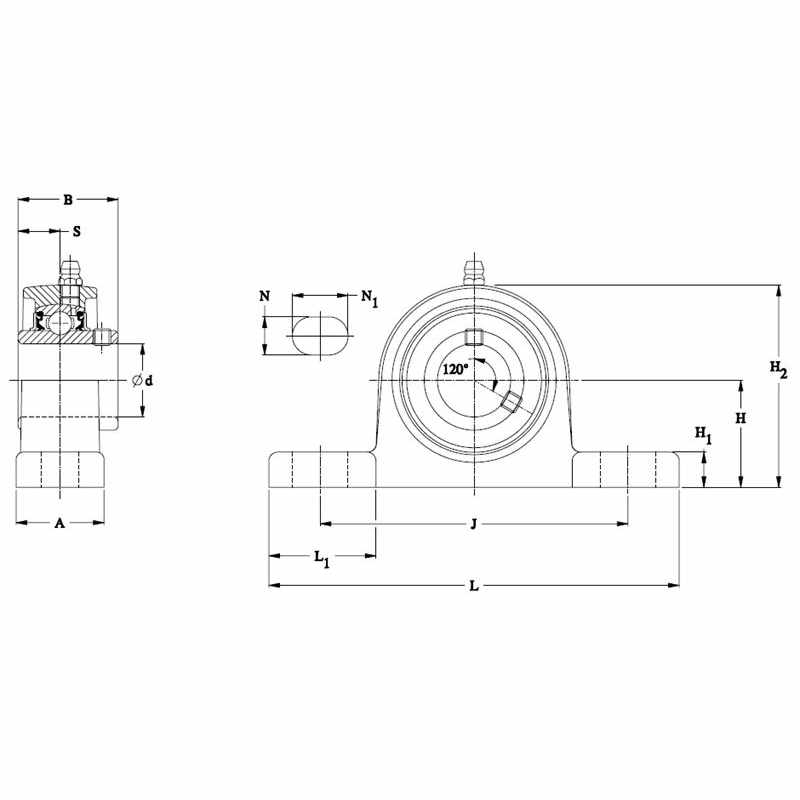

| Inner Ring Width B | 42,90 | mm | |
| Bolt Hole Length N1 | 21 | mm | |
| Foot Height H1 | 14 | mm | |
| Abmessung L1 | 39 | mm | |
| Total Height H2 | 91 | mm | |
| Housing Width A | 38 | mm |
| Center of Bearing from End S | 17,50 | mm | |
| Bolt Hole Size N | 17 | mm | |
| Base to Center Height H | 47,60 | mm | |
| Bolt Hole Spacing J | 127 | mm | |
| Total Length L | 167 | mm |
| Bearing Style | Ball Bearing | ||
| Locking Style | Set Screw Locking | ||
| Schmierausführung | Standard Food Safe Grease | ||
| Bearing Number | SUC207/F |
| Housing Construction | Two-Bolt Pillow Block | ||
| Gewicht | 1,40 | Kg | |
| Bore Size | 35 | mm | |
| Gehäusematerial | Cast Stainless Steel |
