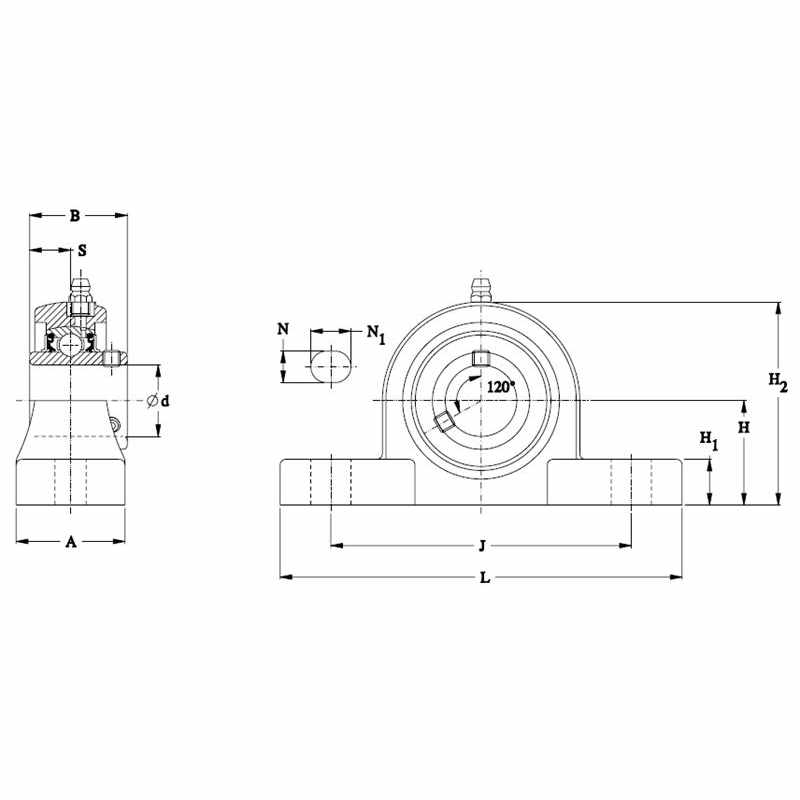

| Housing Width A | 38 | mm | |
| Total Height H2 | 71 | mm | |
| Abmessung L1 | 36,50 | mm | |
| Foot Height H1 | 16 | mm | |
| Bolt Hole Length N1 | 14 | mm | |
| Inner Ring Width B | 34,10 | mm |
| Total Length L | 140,50 | mm | |
| Bolt Hole Spacing J | 105 | mm | |
| Base to Center Height H | 36,50 | mm | |
| Bolt Hole Size N | 11 | mm | |
| Center of Bearing from End S | 14,30 | mm |
| Housing Construction | Two-Bolt Pillow Block | ||
| Bearing Number | SUC205/F | ||
| Schmierausführung | Standard Food Safe Grease | ||
| Locking Style | Set Screw Locking |
| Gehäusematerial | White Thermoplastic (Polymer) | ||
| Bore Size | 25 | mm | |
| Gewicht | 0,35 | Kg | |
| Bearing Style | Ball Bearing |
