| Recommended tightening torque for set screw | 8,3 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 32 kN | ||

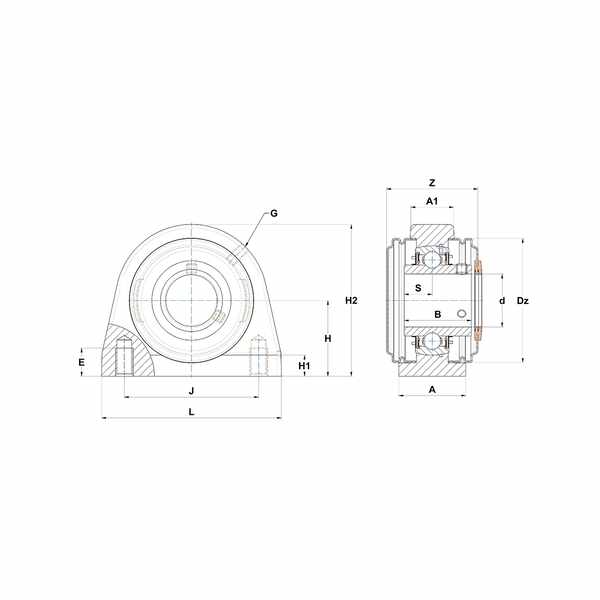

| S - Dist. cent. of raceway to face IR on side opp. lock. device | 19 mm | ||
| L - Housing length | 117 mm | ||
| H2 - Housing height | 100 mm | ||
| H - Distance mounting base to centerline spheric. seating diam. | 49,2 mm | ||
| E - Mounting hole thread depth | 19 mm | ||
| A1 - Housing top width | 28 mm | ||
| Brand | SNR |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 19,3 kN | ||
| Z - Width over covers | 69,3 mm | ||
| N - Mounting hole dimension | M12 | ||
| J - Mounting holes distance | 89 mm | ||
| H1 - Housing foot height | 13 mm | ||
| G - Grease fitting | M6x1 | ||
| Dz - Outer diameter of cover | 88 mm | ||
| A - Housing width | 48 mm |
