| Recommended tightening torque for set screw | 3,9 N-m | ||
| Operating temperature min. | -10 °C | ||
| C - Dynamic load rating | 14 kN | ||

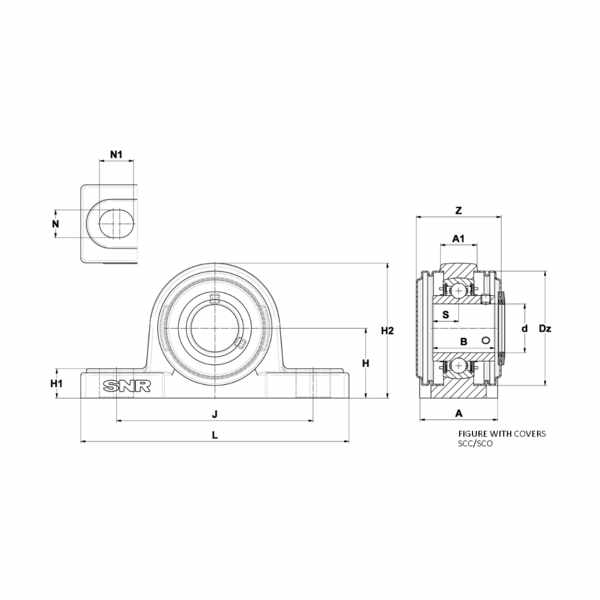

| N1 - Mounting hole length | 19 mm | ||
| L - Housing length | 140 mm | ||
| H2 - Housing height | 70 mm | ||
| H - Distance mounting base to centerline spheric. seating diam. | 36,5 mm | ||
| A1 - Housing top width | 24 mm | ||
| Brand | SNR |
| Operating temperature max. | 80 °C | ||
| C0 - Static load rating | 7,8 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 14,3 mm | ||
| N - Mounting hole dimension | 13 mm | ||
| J - Mounting holes distance | 105 mm | ||
| H1 - Housing foot height | 16 mm | ||
| G - Grease fitting | M6x1 | ||
| A - Housing width | 38 mm |
