| Recommended tightening torque for set screw | 3,9 N-m | ||
| Operating temperature min. | -10 °C | ||
| C - Dynamic load rating | 14 kN | ||

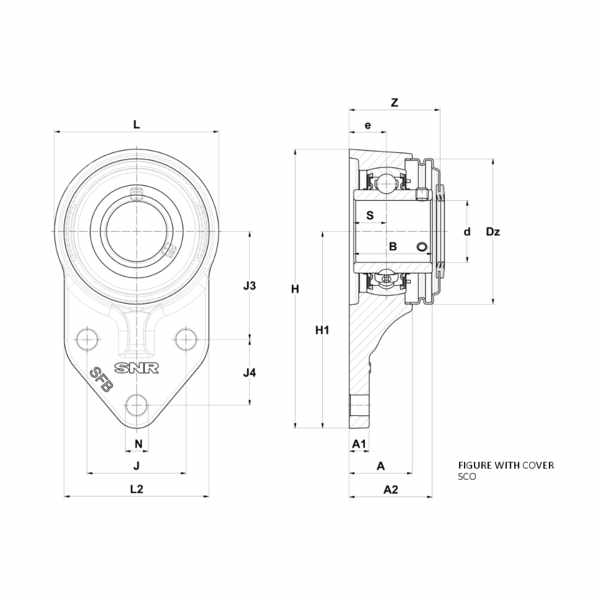

| N - Mounting hole dimension | 10 mm | ||
| L - Housing width / diameter | 67 mm | ||
| J3 - Distance mounting hole to bearing center | 46 mm | ||
| H1 - Distance housing side / insert center | 85,5 mm | ||
| G - Grease fitting | M6x1 | ||
| A2 - Total height from mounting surface | 35,8 mm | ||
| A - Housing height | 27 mm |
| Operating temperature max. | 80 °C | ||
| C0 - Static load rating | 7,8 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 14,3 mm | ||
| L2 - Housing flange width | 63,5 mm | ||
| J4 - Mounting hole distance | 28,7 mm | ||
| J - Mounting holes distance | 41,4 mm | ||
| H - Housing length, width or diameter | 119 mm | ||
| e - Distance mounting surface to bearing center | 16 mm | ||
| A1 - Housing foot height / flange height | 9,7 mm | ||
| Brand | SNR |
