FESTO SRAP
12 Produkte

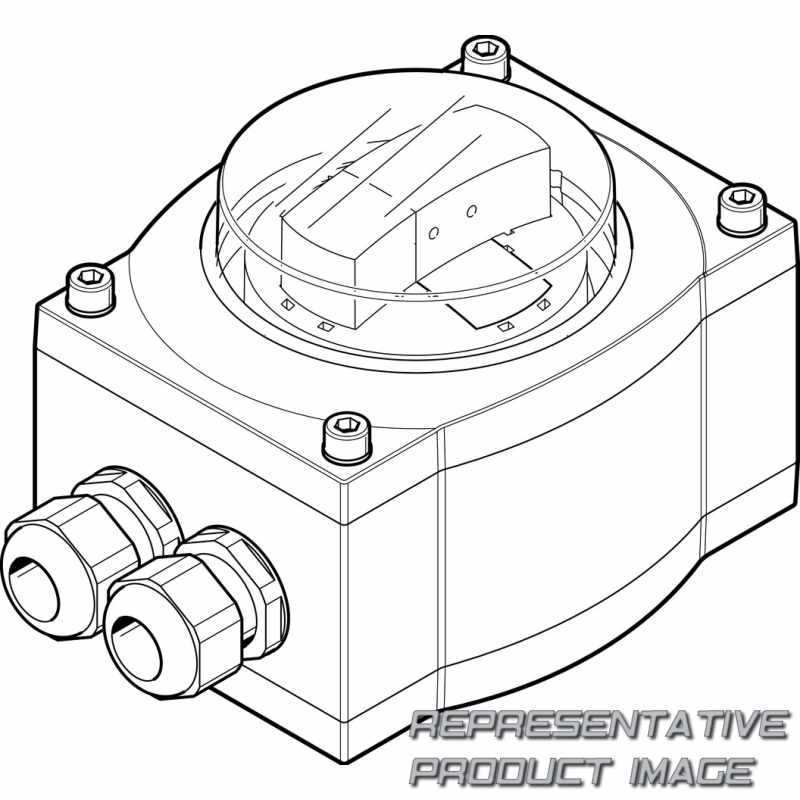

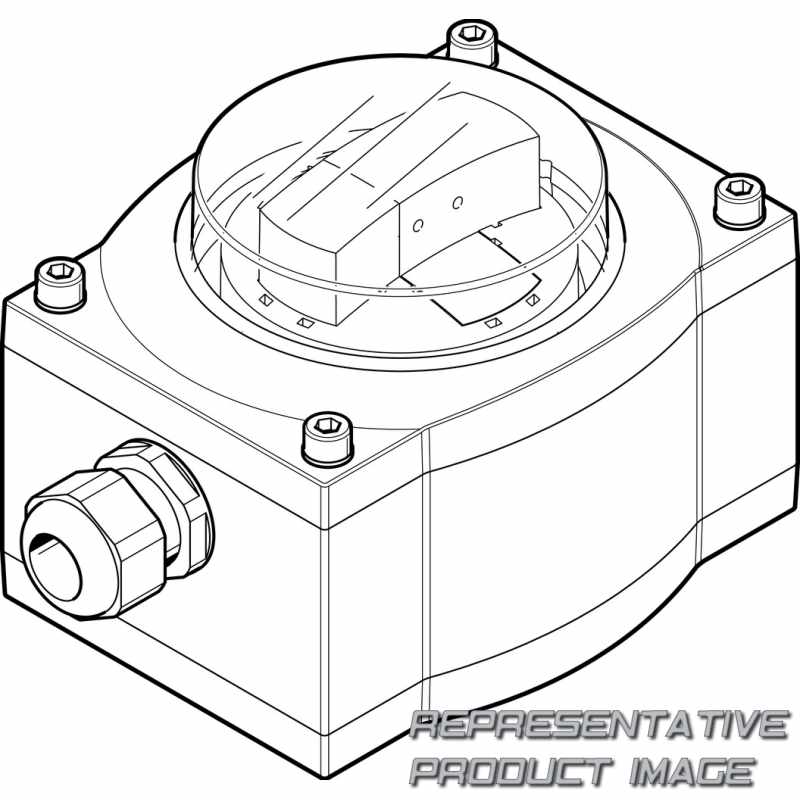

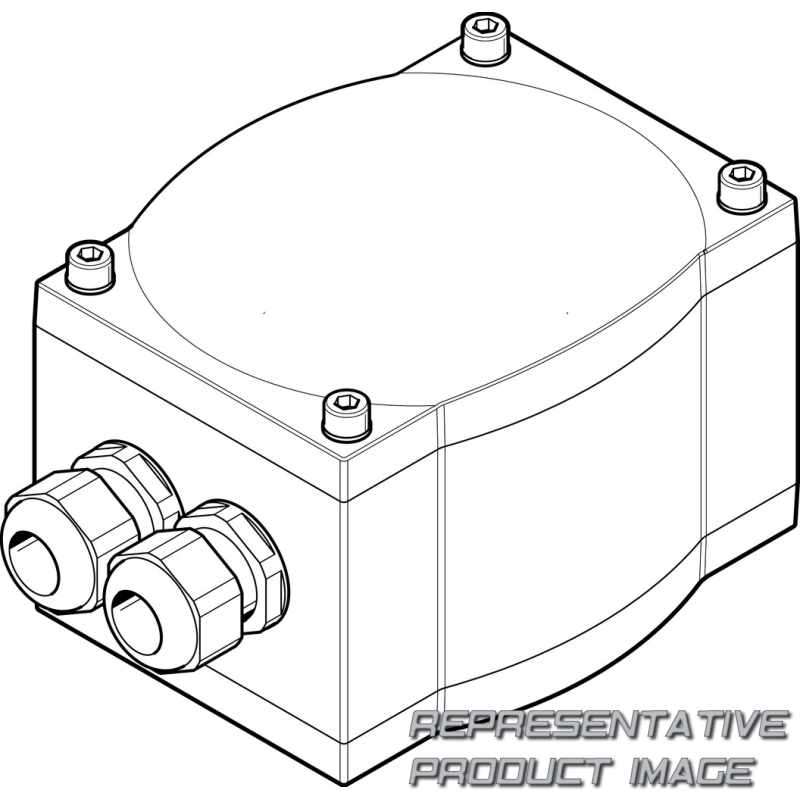

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO SRAP – Sensor box. Finden Sie das passende Produkt durch Filtern mit Anzeigeart, Cable connector und EU certification.
SRAP Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| SRAP | SRAP-M-C-A1-270-1-A-T- | Sensor box |
Typcode zur Katalognummer SRAP,
SRAP-M-C-A1-270-1-A-T-
| 001 | Series |
|---|---|
| SRAP | Sensor box |
| 002 | Product version |
| M | Mainly metal |
| 003 | Design type |
| C | Sensor box |
| 004 | Mechanical interface |
| A1 | Direct mounting, hole pattern 30x80 mm |
| 005 | Display type |
| None | |
| BB | Position indicator blue/black |
| GR | Position indicator green/red |
| YB | Position indicator, yellow/black |
| 006 | Measuring range |
| 270 | 0 ... 270° |
| 007 | Nominal operating voltage |
|---|---|
| 1 | 24 V DC |
| 008 | Electrical output 1 |
| A | 4 ... 20 mA |
| 009 | Electrical connection |
| T | Terminal box |
| 010 | Cable connector |
| M20 | M20x1.5, metal |
| P20 | M20x1.5, polymer |
| 2P20 | 2x M20x1.5, polymer |
| 011 | EU certification |
| None | |
| EX2 | II 3GD |
