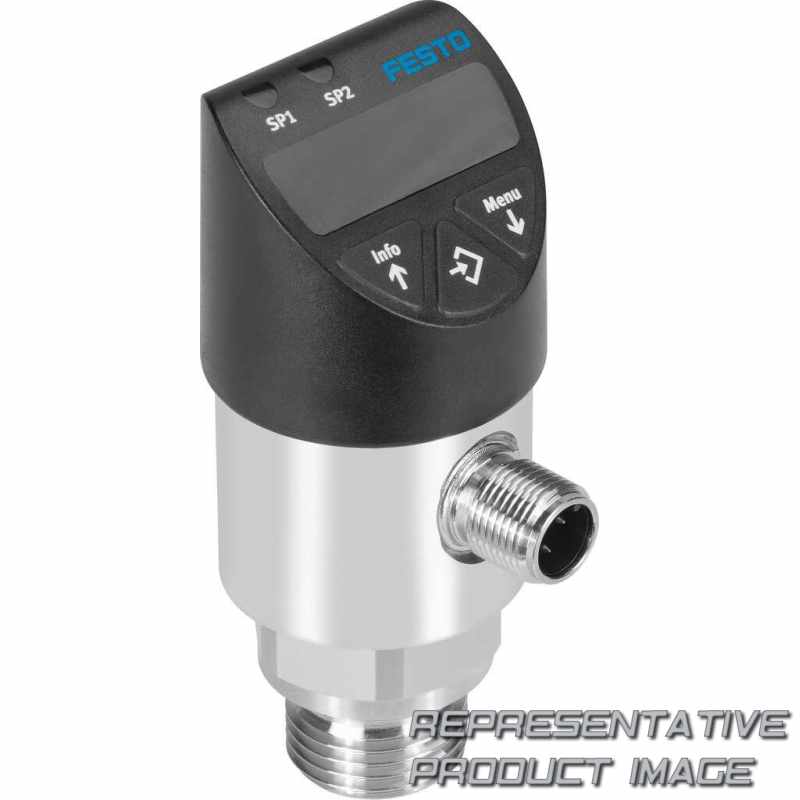

FESTO SPAW
109 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO SPAW – Pressure sensor. Finden Sie das passende Produkt durch Filtern mit Druckmessbereich, Pneumatischer Anschluss, Thread type und Electrical output 1.
SPAW Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| SPAW | SPAW- -R- - - -M12 | Pressure sensor |
Typcode zur Katalognummer SPAW,
SPAW- -R- - - -M12
| 001 | Series |
|---|---|
| SPAW | Pressure sensor |
| 002 | Pressure measuring range |
| B2 | -1 ... 1 bar |
| B11 | -1 ... 10 bar |
| P2 | 0 ... 2 bar |
| P6 | 0 ... 6 bar |
| P10 | 0 ... 10 bar |
| P16 | 0 ... 16 bar |
| P25 | 0 ... 25 bar |
| P50 | 0 ... 50 bar |
| P100 | 0 ... 100 bar |
| 003 | Pressure inlet |
| R | Relative pressure |
| 004 | Pneumatic connection |
| G14 | G1/4 |
| G12 | G1/2 |
| 005 | Thread type |
|---|---|
| F | Female |
| M | Male |
| 006 | Electrical output 1 |
| 2P | 2x PNP |
| 2N | 2x NPN |
| 2PA | 2x PNP, 1 analogue output 4 ... 20 mA |
| 2PV | 2x PNP, 1 analogue output 0 ... 10 V |
| 2NA | 2x NPN, 1 analogue output 4 ... 20 mA |
| 2NV | 2x NPN, 1 analogue output 0 ... 10 V |
| 007 | Electrical connection |
| M12 | Plug M12, A-coded |
