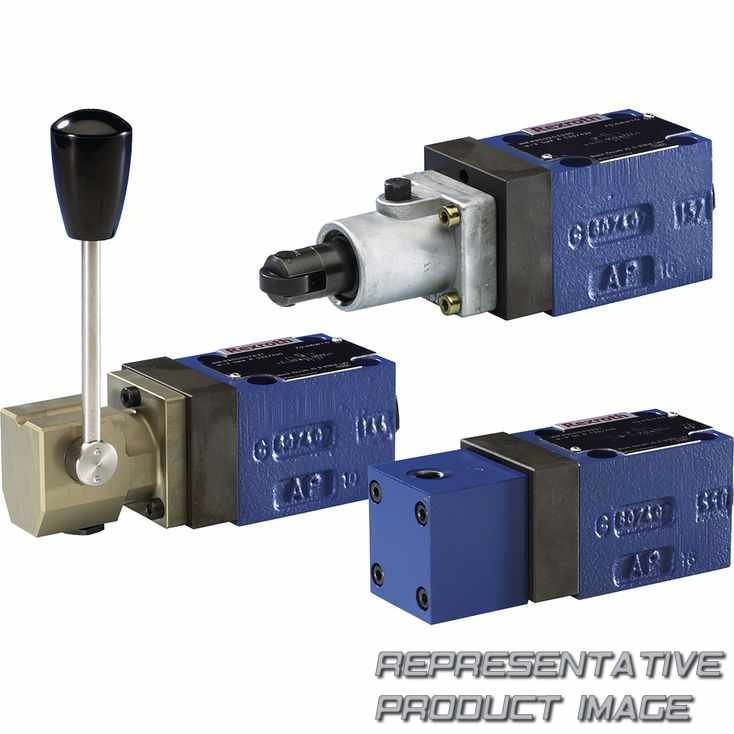

REXROTH SMR
14 Produkte
Technische Daten
- Size 10, 6
- Component series 3X
- Maximum operating pressure 420 / 630 bar
- Maximum flow 40 l/min
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie REXROTH SMR – Multiple. Finden Sie das passende Produkt durch Filtern mit Anschlüsse, Symbole, Betriebsdruck, Ventil und Drossel und Dichtungsmaterial.
SMR Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| SMR | M- - - - -3X- | Multiple |
Typcode zur Katalognummer SMR,
M- - - - -3X-
| 001 | Mineral oil |
|---|---|
| M | M |
| 002 | Ports |
| 2 | 2 main ports |
| 3 | 3 main ports |
| 4 | 4 main ports |
| 003 | Series |
| SH | Hydraulically operated |
| SP | Pneumatcally operated |
| SMM | Manually operated (hand lever) |
| SMR | Mechanically operated (roller plunger) |
| 004 | Size |
| 6 | Sze 6 |
| 10 | Sze 10 |
| 005 | Symbols |
| U | U |
| P | P |
| C | C |
| D | D |
| Y | Y |
| N | N |
| 006 | Component series |
| 3X | Component series 30 to 39 (30 to 39: unchanged installation and connection dimensions) |
| 007 | Detent |
|---|---|
| Wihtout detent | |
| F | With detent (type SMM only) |
| 008 | Operating pressure |
| 420 | 420 bar [5076 psi] |
| 630 | 630 bar [5076 psi] |
| 009 | Spool position monitoring |
| QMAG24 | Monitored spool position “a” |
| QMBG24 | Monitored spool position “b” |
| without position switch | |
| 010 | Valve and throttle |
| Without check valve insert, without throttle insert | |
| P | With check valve insert |
| B12 | Throttle Ø1.2 mm [0.0472 inch] |
| B15 | Throttle Ø1.5 mm [0.0591 inch] |
| B18 | Throttle Ø1.8 mm [0.0709 inch] |
| B20 | Throttle Ø2.0 mm [0.0787 inch] |
| B22 | Throttle Ø 2.2 mm [0.087 inch] |
| 011 | Seal material |
| NBR seals | |
| V | FKM seals |
