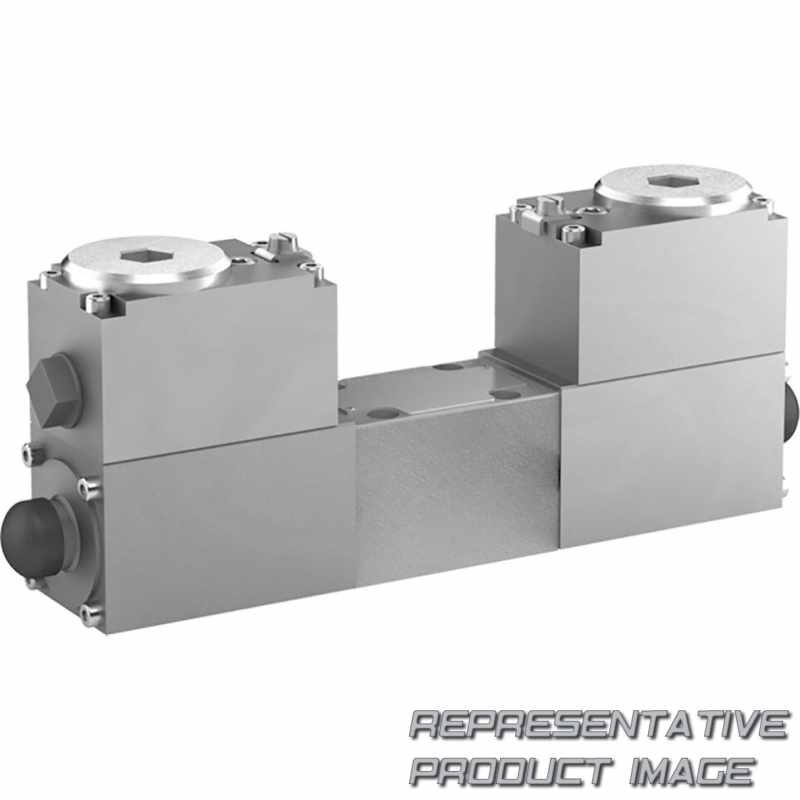

REXROTH R901478029 directional spool valve
4WE6D5X/BW120RNVP1Z2/B10
2.106,58 €
verfügbar
mit 3 bis 4 Wochen Lieferzeit nach United States
Technische Daten
- Size 6
- Component series 5X
- Maximum operating pressure 350 bar
- Maximum flow 70 l/min
- Area of application in accordance with the Explosion Protection Directive 2014/34/EU: I M2; II 2G
- Type of protection of the valve: Ex ib I Mb / Ex ib IIC T6 Gb according to EN 60079-0 / EN 60079-11
| Haupthäfen (4) | 4 main ports |
|---|---|
| Baureihe (WE) | Directional valve |
| Baugröße (6) | Size 6 |
| Symbole (D) | D |
| Baureihe (5X) | Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions) |
| Feder-Rückstellung | With spring return |
| Solenoidtyp (B) | High-power solenoid (wet-pin) |
| Elektrische Spannungen (W120R) | Alternating voltage 120 V |
|---|---|
| Handhilfsbetätigung (N) | With manual override |
| Explosionsschutz (VP1) | NEC500, NEC502, CEC Annex J and CEC Section 18 |
| Elektrischer Anschluss (Z2) | Individual connection; Solenoid with terminal box and cable gland |
| Drossel-Einsatz (B10) | Throttle Ø 1.0 mm |
| Dichtungsmaterial | NBR seals |
