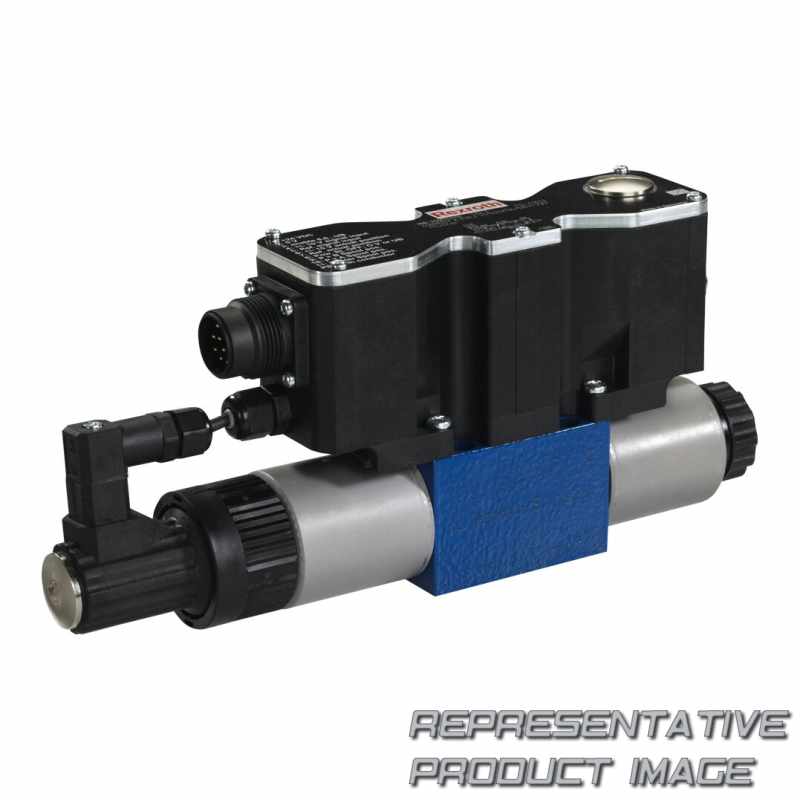

REXROTH R901036403 proportional directional valve
4WREEM10E50J-2X/G24K34/B6V-735
8.956,55 €
Begrenzter Lagerbestand
nur auf Anfrage erhältlich
Technische Daten
- Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32
- Component series 4X, 7X, 6X
- Maximum operating pressure 280 bar
- Maximum flow 1100 l/min
| Anschlüsse (4) | 4 main ports |
|---|---|
| Baureihe (WRE) | Proportional directional valve direct operated, with electrical position feedback |
| Typ (E) | With integrated electronics (OBE) |
| Position der Steuerhülse (M) | Monitoring of control spool position |
| Baugröße (10) | 10 |
| Symbole (E) | E |
| Nennfluss (50) | 50 l/min |
| Stufenfunktion (J) | Overlap jump (opening point 5 % command value with symbols E, W and W1-) |
|---|---|
| Baureihe (2X) | Component series 20 … 29 (20 … 29: unchanged installation and connection dimensions) |
| Versorgungsspannung (G24) | Direct voltage 24 V |
| Elektrischer Anschluss (K34) | Without mating connector with connector according to DIN 43 651 |
| Elektronikschnittstelle (B6) | Command value ±10 VDC |
| Dichtungsmaterial (V) | FKM seal |
