| Standards | iso 6432 | ||
| Hub | 320 mm | ||
| Dämpfung | pneumatic adjustable cushioning | ||
| environmental requirements | industry standard | ||
| scraper | standard industrial scraper | ||
| retracting piston force | 265 n | ||
| min. ambient temperature | -25 °c | ||
| working pressure min. | 1 bar | ||
| Anschlüsse | g 1/8 | ||
| Dämpfungslänge | 17.5 mm | ||
| torque for torsion protection, max. | 0.4 nm | ||
| Gewicht | 0.278 kg | ||
| weight +10 mm stroke | 0.013 kg |
| piston Ø | 25 mm | ||

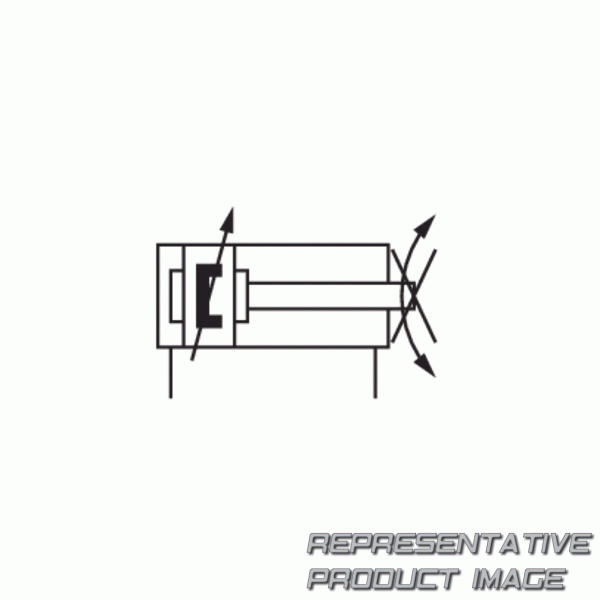

| Funktionsprinzip | double-acting | ||
| magnetic piston | piston with magnet | ||
| piston rod | non-rotating | ||
| pressure for determining piston forces | 6,3 bar | ||
| extracting piston force | 309 n | ||
| max. ambient temperature | 80 °c | ||
| working pressure max | 10 bar | ||
| Kolbenstangengewinde | m10x1,25 | ||
| cushioning energy | 2.3 j | ||
| rotation angle tolerance (±) | 2.2 ° | ||
| weight 0 mm stroke | 0.265 kg |
