| max. medium temperature | 80 °c | ||
| Medium | compressed air | ||
| weight +10 mm stroke | 0.079 kg | ||
| impact energy | 0.38 j | ||
| Anschlüsse | g 1/4 | ||
| working pressure min. | 0.6 bar | ||
| min. ambient temperature | -20 °c | ||
| retracting piston force | 1766 n | ||
| scraper | standard industrial scraper | ||
| environmental requirements | industry standard | ||
| Dämpfung | elastic cushioning | ||
| Hub | 50 mm | ||
| Standards | iso 15524 |
| min. medium temperature | -20 °c | ||
| stroke max. | 150 mm | ||
| weight 0 mm stroke | 0.523 kg | ||
| Kolbenstangengewinde | m10 | ||
| working pressure max | 10 bar | ||
| max. ambient temperature | 80 °c | ||
| extracting piston force | 1964 n | ||
| pressure for determining piston forces | 6,3 bar | ||
| piston rod | single | ||
| magnetic piston | piston without magnet | ||

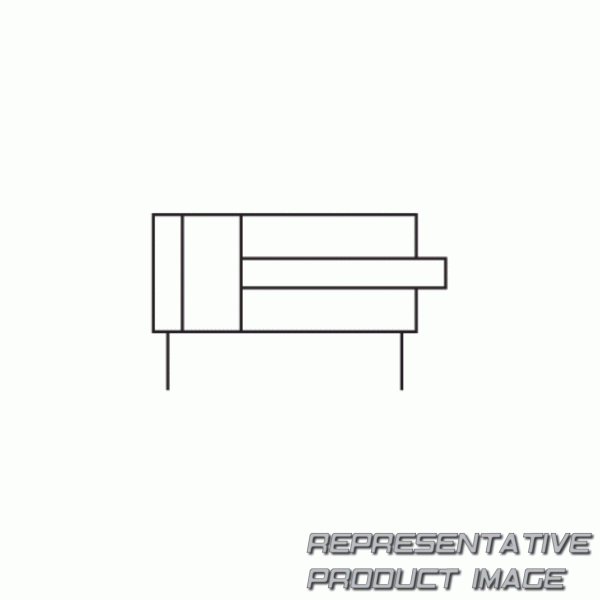

| Funktionsprinzip | double-acting | ||
| piston Ø | 63 mm |
