| material, front cover | aluminum | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| max. medium temperature | 80 °c | ||
| Medium | compressed air | ||
| max. permissible radial bearing load | 2670 n | ||
| working pressure max | 10 bar | ||
| max. ambient temperature | 80 °c | ||
| extracting piston force | 507 n | ||
| pressure for determining piston forces | 6,3 bar | ||
| magnetic piston | piston with magnet | ||

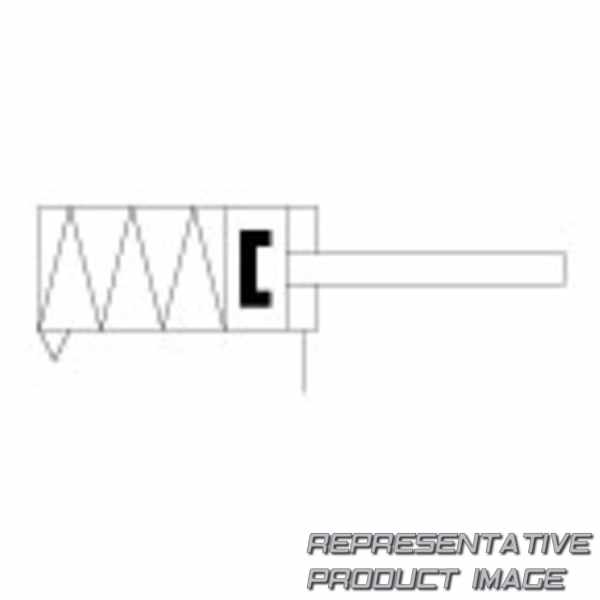

| Funktionsprinzip | single-acting, extended without pressure | ||
| Hub | 25 mm | ||
| Standards | based on iso 21287 |
| piston rod | stainless steel | ||
| max. particle size | 50 µm | ||
| min. medium temperature | -20 °c | ||
| max. permissible radial bearing load f during switching operation | 420 n | ||
| spring force max. | 35 n | ||
| working pressure min. | 2 bar | ||
| min. ambient temperature | -20 °c | ||
| retracting piston force | 309 n | ||
| cylinder special features | roller version, non-rotating | ||
| Dämpfung | elastic cushioning | ||
| Anschlüsse | 1/8 npt | ||
| piston ø | 32 mm |
