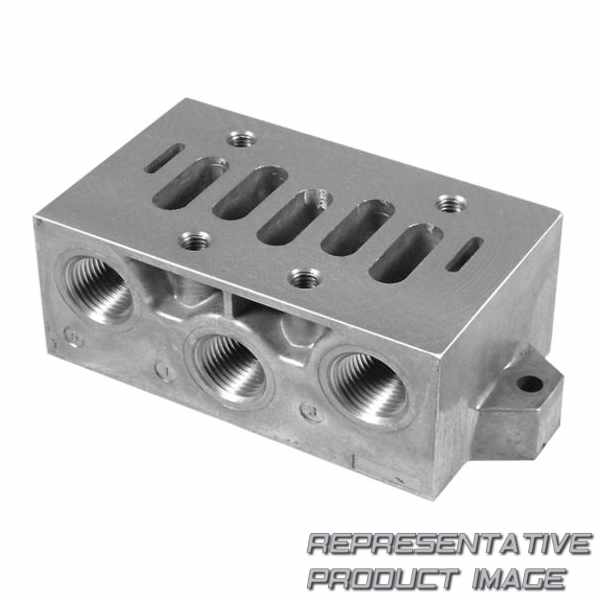

AVENTICS R432009166

Name: R432009166 AVENTICS
Brand: AVENTICS
SKU: 753721-de-eur
Price: 103.05 EUR
Availability: InStock

103,05 € ~~121,80 €~~ -15%

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	10 bar

Gewicht	540g

Typ		base plate
compressed air connection input		g 3/4
direction of pneumatic port (3,5)		on the side
exhaust type		ports separated
frame size		iso 3
working pressure min.		3.5 bar
min. ambient temperature		10 °c
min. medium temperature		10 °c
Medium		compressed air
Gewicht		0.54 kg

direction of pneumatic port (1)		on the side
compressed air connection output		g 3/4
port exhaust		g 3/4
exhaust (3,5)		with directional exhaust (3/5)
Standards		iso 5599-1
working pressure max		10 bar
max. ambient temperature		200 °c
max. medium temperature		120 °c
mounting screw		m8
Material base plate		die-cast aluminum
