| activation | pneumatically | ||

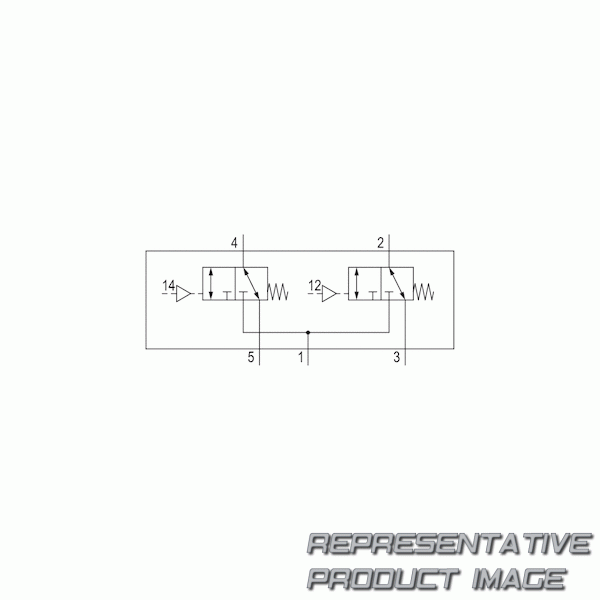

| switching principle | 2x3/2 | ||
| compressed air connection output | g 1/4 | ||
| working pressure min. | -0.9 bar | ||
| Dichtprinzip | soft seal | ||
| control pressure min. | 3 bar | ||
| min. ambient temperature | -10 °c | ||
| min. medium temperature | -10 °c | ||
| Medium | compressed air | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| version pneumatic port | nc/nc | ||
| compressed air connection pilot exhaust | m5 | ||
| flow conductance c | 5.9 l/(s*bar) |
| nominal flow qn | 1100 l/min | ||
| return type | with spring return | ||
| Anschlussart | pipe connection | ||
| working pressure max | 10 bar | ||
| valve type | spool valve | ||
| control pressure max. | 10 bar | ||
| max. ambient temperature | 50 °c | ||
| max. medium temperature | 50 °c | ||
| max. particle size | 5 µm | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| compressed air connection, exhaust | g 1/4 | ||
| flow conductance b | 0,25 |
