| frame size | 26 mm | ||
| compressed air connection pilot exhaust | base plate din iso 15407-1 | ||
| compressed air connection, exhaust | base plate din iso 15407-1 | ||
| Anschlussart | plate connection | ||
| pilot valve width | 26 mm | ||
| certificates | free of substances that impair surface wetting in the coating process | ||
| Dichtprinzip | soft seal | ||
| electrical connection size | m12x1 | ||
| Handhilfsbetätigung | without detent | ||
| dc operating voltage | 24 v | ||
| working pressure min. | -0.95 bar | ||
| Ausführung | closed center | ||
| nominal flow qn | 650 l/min |
| power consumption dc | 1.6 w | ||
| compressed air connection pilot input | base plate din iso 15407-1 | ||
| compressed air connection input | base plate din iso 15407-1 | ||
| valve type | spool valve, positive overlapping | ||
| Standards | iso 15407-1 | ||
| pilot | external | ||
| electr. connection | 4-pin | ||
| electrical connection type | plug | ||
| voltage tolerance dc | -10% / +10% | ||
| working pressure max | 16 bar | ||
| compressed air connection output | base plate din iso 15407-1 | ||

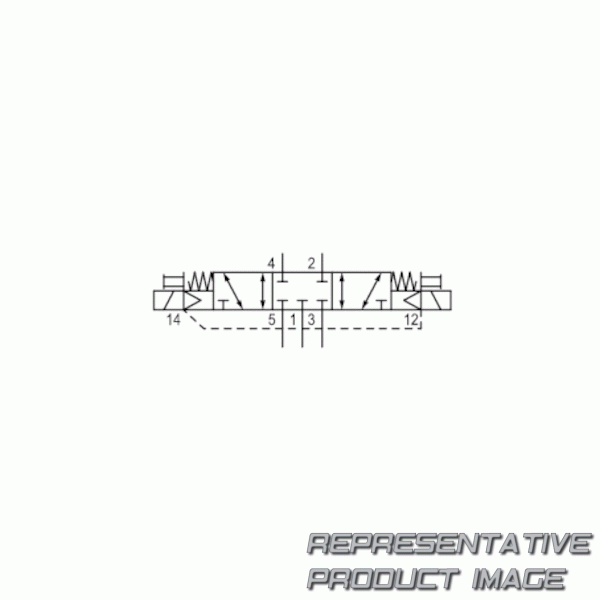

| switching principle | 5/3 |
